How to Connect Magewell USB Capture and USB Capture Plus Family to the Computer Via USB Type C Connector

2017.06.28
USB Interface
Connection Tutorial

Scenario:

Some computers, especially laptops, are only equipped with USB Type C sockets but no USB Type A socket. Because USB Capture and USB Capture Plus devices use Type A interface, they can’t be directly connected to such a computer.

Additional accessory needed:

A high-quality USB Type A- Type C converter.

Method:

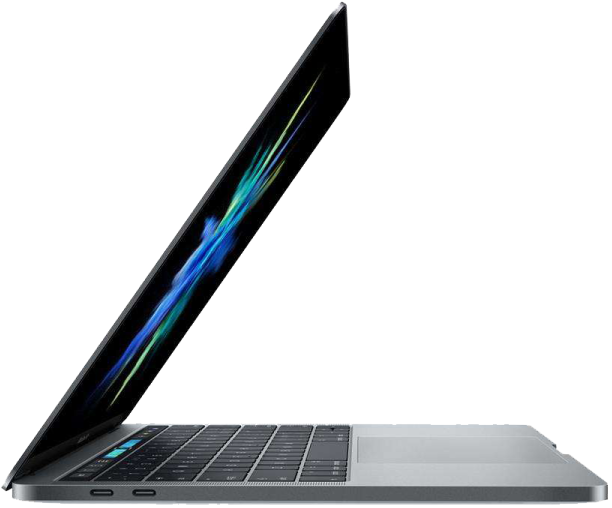

Find the original Magewell USB Type A cable, which has been included with the capture device. Connect the cable to the capture device and the converter. Plug the connector into the Type C socket on the computer. See the picture below.

* Notes:

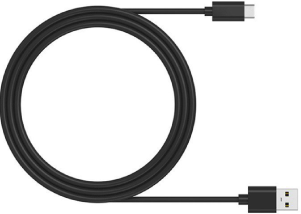

  1. The USB Type A to Type C converting cable as is shown below cannot be used. This is because the included USB cable is specially customized and can’t be replaced by the common ones on the market. If a cable other than the original one is used, it might lead to capture problem or even damage the capture device.
  2. When connected via USB Type C, the capture device will still transfer data at USB 3.0 speed.
