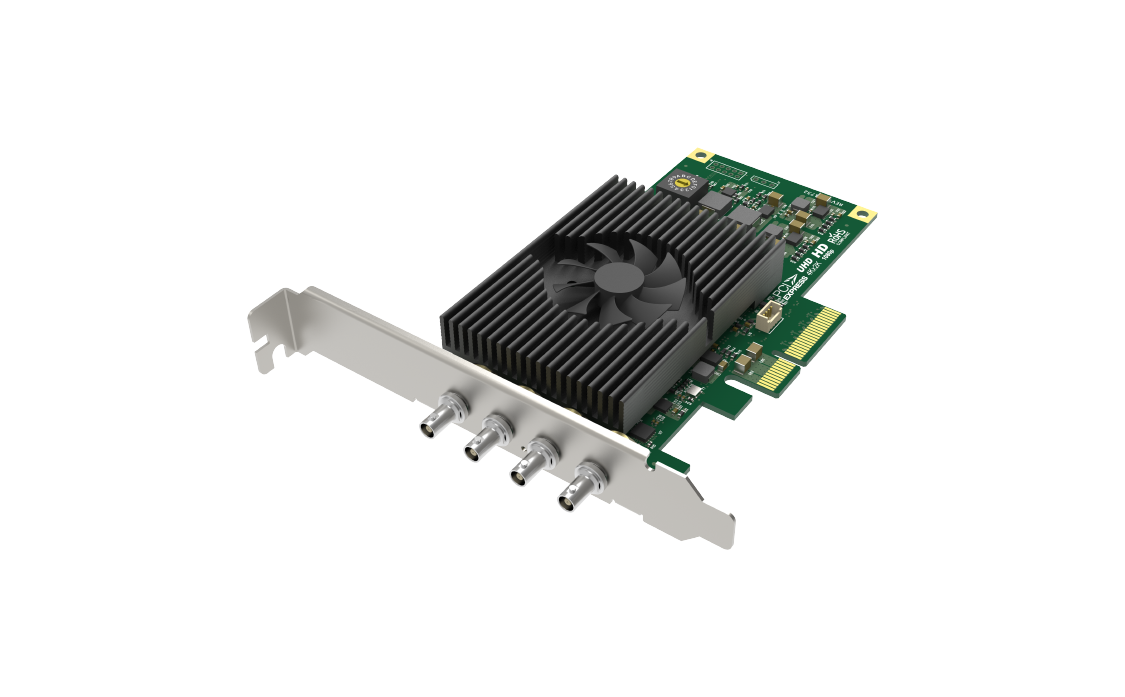

Pro Capture SDI 4K Plus
Pro Capture SDI 4K Plus

One-Channel 4K Capture Card

Part number: 11180

SKU: 111800000

Capture one 12G-SDI signal in one of the following connecting methods:

  • Single-link 12G-SDI
  • Dual-link 6G-SDI
  • Quad-link 3G-SDI

Interface

Specifications and Features

Interface

Interface

Input Interface

  • SD/HD/3G/2K/6G/12G SDI x1
  • SD/HD/3G/2K/6G SDI x1
  • SD/HD/3G/2K/SDI x2
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • PCIe Gen2 x4
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

Time Code

Closed Caption

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows, Linux and Mac SDK

2-year Warranty

Driver

driver
document document Download

V1.3.0.4323

History version Arrow Arrow

1.89 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4076

History version Arrow Arrow

1.73 MB | 2019.07.01 | Windows 7/8/8.1 series & Server System

Descriptions:

Support of Pro Capture Dual SDI 4K Plus.

driver
document document Download

V1.3.0.4328

History version Arrow Arrow

2.15 MB | 2023.03.10

Descriptions:
  1. Fix problem: Driver installation on a Linux 6.1 or 6.2 kernel system may fail.
driver
document document Download

V1.3.0.4177

History version Arrow Arrow

2.00 MB | 2020.04.13

Descriptions:
  1. Fix problem: In v4l2, enum_framesizes cannot get the correct information in the DISCRETE model.
  2. Fix problem: Signals cannot be locked when using ProCapture DVI 4K card to capture signals.
  3. Fix problem: Driver installation on a 5.4 or 5.6 kernel system may fail.
driver
document document Download

V1.3.0.4186

History version Arrow Arrow

1.99 MB | 2020.08.19

Descriptions:

Fix problem: driver installation may fail on an operating system with kernel version 5.7.

driver
document document Download

V1.3.0.4328

History version Arrow Arrow

1.96 MB | 2023.03.10

Descriptions:
  1. Fix problem: Driver installation on a Linux 6.1 or 6.2 kernel system may fail.
driver
document document Download

V1.3.4141

History version Arrow Arrow

515 KB | 2019.12.10

Descriptions:

* Supported macOS: 10.12/10.13/10.14/10.15/11/12/13 (It does not support macOS 14 yet.)

  1. Add support for Pro Capture Dual SDI 4K Plus.
  2. Add support for NV12 format signals.
  3. Optimize CPU usage.
  4. Fix problem: in some players, the number of audio channels is not detected correctly.
  5. Fix problem: sometimes the quantization range of RGB color is not detected correctly.
  6. For Pro Capture cards with fans, add the function of automatically adjusting fan speed according to the temperature.
driver
document document Download

V1.3.4247

History version Arrow Arrow

939 KB | 2021.05.18

Descriptions:

Initial release.

Supported Operating Systems

  • macOS* 10.12/10.13/10.14/10.15/11/12/13 (It does not support macOS 14 yet.)

Supported Capture & Playback Software

  • A third-party capture/playback software is required to capture both video and audio. The native capture/playback software of macOS (such as QuickTime Player) can only recognize the audio device of Pro Capture but not its video device.
Firmware

Firmware
History version Arrow Arrow

27.2 MB | 2017.12.19 | Windows 7 and later

Descriptions:
  1. Add support to Closed Caption and ANC data in SDI signal.
  2. Fix the problem of HDMI output signal (4K@60fps, 4:4:4) of Pro Capture HDMI 4K Plus (Hardware version A).
  3. This firmware is applicable to Pro Capture AIO 4K Plus (Hardware Version C/D), Pro Capture AIO 4K (Hardware version A), Pro Capture AIO (Hardware version C), Pro Capture Dual SDI (Hardware Version B/C), Pro Capture HDMI 4K Plus (Hardware version A), Pro Capture Mini SDI (Hardware version B), Pro Capture Quad SDI (Hardware version C), Pro Capture SDI 4K Plus (Hardware Version C/D), Pro Capture SDI (Hardware version B). Click here to see how to check the hardware version of Magewell product.
Firmware
History version Arrow Arrow

6.35 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  2. This firmware applies only to Pro Capture Dual SDI A/B/C revisions, and Pro Capture Mini SDI B revision.
Documents
Documents User Manual for Pro Capture Family
English | 704 KB | 2023/08/23
Documents Short FAQs about Pro Capture
English | 60.5 KB | 2021/01/19
Accessories

Included


HD-BNC to BNC Cable x4

Part number: ACC00053

Low Profile Bracket x1

Part number: ACC01251

toTop
