Pro Convert 12G SDI 4K Plus
Pro Convert 12G SDI 4K Plus

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI®

SKU:
640900000 (for US/EU/UK/AU/JP users);
640900002 KR

  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Supports inputs up to 4K at 60fps with 16 channels of embedded audio
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

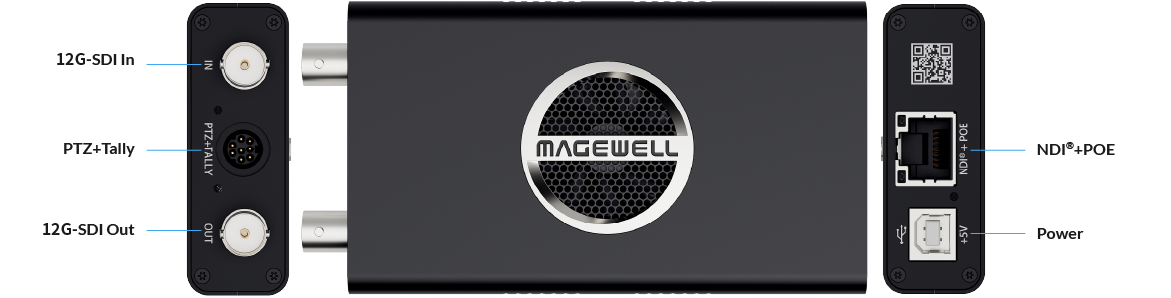

Interface

Specifications and Features

Input Features

  • Single-link 12G-SDI input and loop-through
  • Support for up to 4096x2160 60fps input
  • Support for up to 16 (mono) audio channels

NDI® Format

  • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
  • Send NDI streams across network segments
  • Remotely control PTZ cameras via NDI
  • Support for NDI 4.x

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI
  • Tally lights and camera mounting for live production applications
  • HTTP-based APIs for custom integration
Firmware
Firmware
document document Download

V1.1.182

History version Arrow Arrow

13.3 MB | 2021.06.10

Descriptions:
  • Improve the stability of the device when working in different transport modes.
  • Add the APIs set-eth-web-control and get-eth-web-control, for enabling/disabling the Web UI service of Pro Convert.
  • Fix known issues.
Documents
Documents User Manual for Pro Convert Decoders
English | 7.56 MB | 2021/02/09
Documents Short FAQs about Pro Convert
English | 63.3 KB | 2021/01/20
Documents User Manual for Pro Convert Encoders
English | 9.78 MB | 2020/12/11
Documents Description of Mini-DIN8 Breakout
English | 226 KB | 2018/12/18
Accessory

Included


Power Adapter (US/EU/UK/AU/JP)x1

Part number: 98017

Power Adapter (KR) x1

Part number: 98015

USB Type A to Type B cable x1

Part number: 90065

Mini DIN8 to DIN8+DB9 cable x1

Part number: 90110

Tally Light x1

Part number: 99090

L bracket x1

Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
