Ultra Encode SDI Plus Module Specifications

document Download

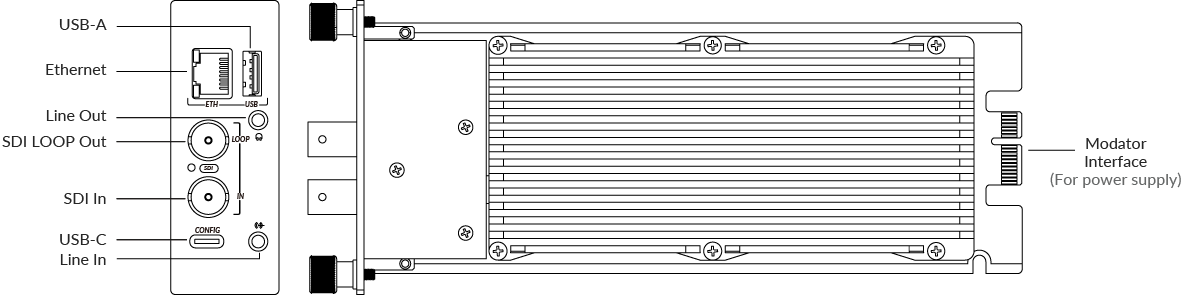

Input/Output Ports

  • 1 x RJ45 1000Mbps Ethernet port
  • 1 x USB Type-C port for configuration
  • 2 x SD/HD/3G/6G BNC ports
    • 1 x Input
    • 1 x Loop-through
  • 1 x 3.5mm LINE IN
  • 1 x 3.5mm LINE OUT
  • 1 x USB Type-A

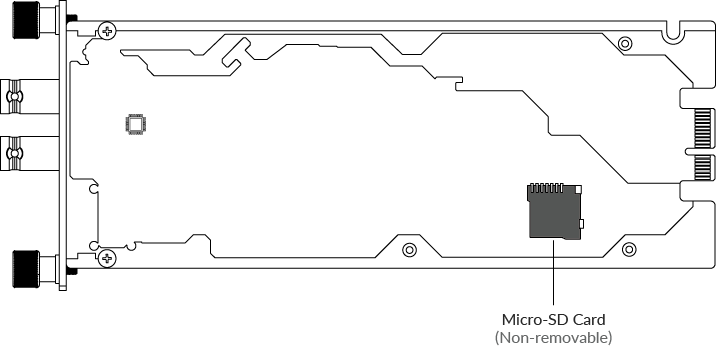

  • 1 x Micro-SD card slot
  • 1 x Modator interface for connecting to Modator 2U (hot-swappable)

Input & Loop-through

  • Video
    • Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS (ST 425)/6G (ST 2081) standards
    • Typical resolution/frame rate of SDI input/loop-through signal:
      • 4096x2160p/3840x2160p 23.98/24/25/29.97/30
      • 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
      • 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
      • 1280x720p 25/29.97/30/50/59.94/60
      • 720x576 25p/50i (PAL SD)
      • 720x480 29.97p/59.94i (NTSC SD)
    • Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4
  • Audio
    • SDI embedded audio input/output: 16-Channel, 24-bit, 192kHz sample rate
    • 3.5mm LINE IN audio input: 2-Channel, 24-bit, 192kHz sample rate
    • 3.5mm LINE OUT audio output: 2-Channel, 24-bit, 192kHz sample rate

Encoding Features

  • Video
    • Bitrate:
      • NDI HX3: up to 62.0Mbps, down to 1.5Mbps
      • Others: up to 32.0Mbps, down to 256kpbs
    • Dual-stream encoding: main stream and sub stream
    • Main stream
      • Resolution/frame rate:
        • Follow input
        • 4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
        • 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
      • Native CEA–608/608 over 708 captions
    • Sub stream
      • Supports enabling/disabling sub stream
      • Resolution/frame rate:
        • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
        • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • H.264/H.265 (HEVC) Codec:
      • System timecode or RP–188 standard timecode for SEI Message setting
      • H.265 (HEVC) SEI message supports carrying interlacing signal mark
      • Video aspect ratio conversion
      • Image rotation: 0°, 90°, 180°, 270°
      • Cropping
      • Output 3D video
  • Audio
    • Encode up to 8 audio streams, including 1 x 8-channel stream and 7 x 2-channel streaming
    • Supports mapping between source channels and encoded audio channels
    • Bitrate: 256/192/128/96/64/48/32/16 kbps
    • Output source embedded audio and line in through LINE OUT

Live stream

  • Natively supports streaming to:
    • Twitch
    • YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”.
    • Facebook, enabling backup stream and publishing to timeline or a new event.
    • WOWZA over RTMP, adding token and publishing to timeline or a new event.
    • WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.
  • Supports streaming protocols:
    • RTSP
    • RTMP/RTMPS
    • SRT Caller/SRT Listener
    • NDI HX2/NDI HX3
    • HLS
    • TS over UDP/TS over RTP
    • TVU ISSP
  • Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI HX2 sessions (if included)
  • Supports 1 NDI HX3 sessions exclusively
  • Supports specifying a video stream and an audio stream for each streaming session
  • Supports live stream scheduler

Record

  • Supports setting and managing recording function and tasks
  • Supports recording to local storage (The supplied SD card of 128 GB)
    • Supports format and performance test
    • Automatically upload files to remote file storage platform including FTP server, Google Drive, and Dropbox
  • Supports recording to external USB storage
    • Supported system format: FAT32, exFAT and NTFS
  • Supports recording to network attached storage (NFS/CIFS)
    • Supported system format: NFS, CIFS
  • Supports loop recording and normal recording
  • Supports saving recording files in MP4, MOV or TS format
  • Supports specifying a video stream and an audio stream for each recording task
  • Supports customizing recording file name and prefix
  • Supports splitting recording files by time
    • MP4, MOV: up to 4 hours
    • TS: no limit
  • Supports exporting or downloading files through Web UI
  • Supports recording scheduler

Web UI

  • Register with Magewell Control Hub for remote centralized management
  • Supports configuring and managing via Web UI
  • View real-time device status
  • Preview encoded video
  • Set input sources
  • Customize encoding parameters
  • Manage streaming destinations, start/stop streaming, view streaming status
  • Manage recording tasks and recorded files
  • Set up to 8 overlays for each stream, including text, picture, and clock
  • Update firmware
  • Supports registering Magewell Control Hub for centralized management
  • Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provides HTTP APIs

Network Connections

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
  • 4G/5G USB modem (not supplied)
  • USB Net

Storage

  • Micro-SD card (supplied): 128GB
  • USB flash drive (not supplied): FAT32, NTFS, exFAT
  • NAS (not supplied): NFS/CIFS

Indicators

  • Input signal:
    • On: locked
    • Off: unlocked

Power Consumption

  • Max power consumption: 14.42W

Physical Specifications

  • Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
  • Weight: ≈322g

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
