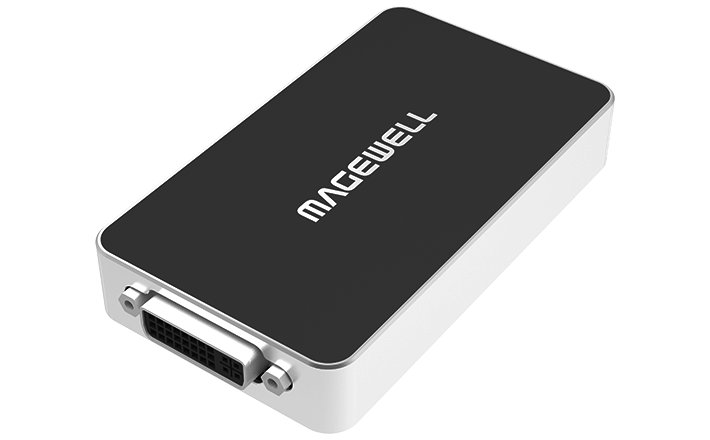

USB Capture DVI Plus
USB Capture DVI Plus

One-channel HD capture card

Part number: 32080

SKU: 320800000

Captures one of the following

  • DVI + audio
  • VGA + audio
  • Component + audio
  • HDMI + embedded audio
  • Audio input via Line in
  • Extract HDMI embedded audio output via Line out

Interface

Specifications and Features

Interface

Input Interface

  • DVI x1 (To VGA and HDMI via convertor or breakout cable)
  • One video input+ embedded audio
  • Support input resolution up to 2048×2160 pixels

Audio Input/Output Interface

  • 3.5mm audio jack for Line In/ Line Out Host Interface

Host Interface

  • USB 3.0, compatible with USB 2.0

OS

  • Windows, Linux, Mac, Chrome OS

Capture format

  • Support capture resolutions up to 2048x2160
  • Support capture frame rates up to 120fps
  • Capture 2-channel embedded audio and unbalanced analog audio

Included Software

  • USB Capture Utility, Capture Express, etc.

Compatible Software

  • Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.

Others

  • Auto detection of input signal format
  • Windows, Linux and Mac SDK
  • Continuously work for 24hx7
  • LED status indicator
  • 3-year warranty
  • Form factor:101.5mm (L) x 56.8mm (W) x 17mm (H)
Full specifications and features
Firmware
Firmware
document document Download

Latest

History version Arrow Arrow

9.03 MB | 2024.12.03

Descriptions:
  1. Support customizing device name, audio control for USB Capture HDMI Gen 2 Rev D/USB Capture SDI Gen2 Rev B/USB Capture AIO Rev B/USB Capture HDMI Plus Rev B/USB Capture HDMI Plus Rev C/USB Capture SDI Plus Rev B/USB Capture DVI Plus Rev B/USB Capture SDI 4K Plus Rev C.
  2. Support customizing device name, audio control and viewing core temperature for for USB Capture HDMI 4K Plus Rev C.
  3. Support for USB Capture HDMI 4K Pro.
  4. Fix known issues.
Tools
Tools
document document Download

V3.0.5.48315

History version Arrow Arrow

13.1 MB | 2024.09.03

Descriptions:
  1. Support customizing device name, audio control for USB Capture HDMI Gen 2 Rev D/USB Capture HDMI Plus Rev C/USB Capture AIO Rev B/USB Capture DVI Plus Rev B/USB Capture SDI 4K Plus Rev C/USB Capture SDI Plus Rev B/USB Capture SDI Gen 2 Rev B (The firmware must be upgraded to V2.6.10385 and above).
  2. Support customizing device name, audio control and viewing core temperature for for USB Capture HDMI 4K Plus Rev C (The firmware must be upgraded to V2.6.10385 and above).
  3. Support for USB Capture HDMI 4K Pro.
  4. Fix known issues.
Tools
document document Download

V3.0.5.48315

History version Arrow Arrow

12.9 MB | 2024.09.03

Descriptions:
  1. Support customizing device name, audio control for USB Capture HDMI Gen 2 Rev D/USB Capture HDMI Plus Rev C/USB Capture AIO Rev B/USB Capture DVI Plus Rev B/USB Capture SDI 4K Plus Rev C/USB Capture SDI Plus Rev B/USB Capture SDI Gen 2 Rev B (The firmware must be upgraded to V2.6.10385 and above).
  2. Support customizing device name, audio control and viewing core temperature for for USB Capture HDMI 4K Plus Rev C (The firmware must be upgraded to V2.6.10385 and above).
  3. Support for USB Capture HDMI 4K Pro.
  4. Fix known issues.
Tools
document document Download

V3.0.5.48315

History version Arrow Arrow

15.5 MB | 2024.09.03

Descriptions:
  1. Support customizing device name, audio control for USB Capture HDMI Gen 2 Rev D/USB Capture HDMI Plus Rev C/USB Capture AIO Rev B/USB Capture DVI Plus Rev B/USB Capture SDI 4K Plus Rev C/USB Capture SDI Plus Rev B/USB Capture SDI Gen 2 Rev B (The firmware must be upgraded to V2.6.10385 and above).
  2. Support customizing device name, audio control and viewing core temperature for for USB Capture HDMI 4K Plus Rev C (The firmware must be upgraded to V2.6.10385 and above).
  3. Support for USB Capture HDMI 4K Pro.
  4. Fix known issues.
Tools
document document Download

V3.0.5.48315

History version Arrow Arrow

15.9 MB | 2024.09.03

Descriptions:
  1. Support customizing device name, audio control for USB Capture HDMI Gen 2 Rev D/USB Capture HDMI Plus Rev C/USB Capture AIO Rev B/USB Capture DVI Plus Rev B/USB Capture SDI 4K Plus Rev C/USB Capture SDI Plus Rev B/USB Capture SDI Gen 2 Rev B (The firmware must be upgraded to V2.6.10385 and above).
  2. Support customizing device name, audio control and viewing core temperature for for USB Capture HDMI 4K Plus Rev C (The firmware must be upgraded to V2.6.10385 and above).
  3. Support for USB Capture HDMI 4K Pro.
  4. Fix known issues.
Documents
Documents Quick Start Guide for USB Capture
English | 538 KB | 2024/11/12
Download
Documents USB Capture Utility User Manual
English | 1.68 MB | 2024/09/25
Download
Documents User Manual for USB Capture Plus & Pro
English | 1.43 MB | 2024/08/30
Download
Documents Short FAQs about USB Capture (Plus)
English | 57.6 KB | 2021/01/19
Download
Accessories

Included

USB 3.0 Cable

Part number: ACC10001

DVI to VGA connector

Part number: ACC00011

DVI-I to HDMI + Component breakout

Part number: ACC00010

Optional

Mini Repeater 4K HDMI
