XI104XUSB
XI104XUSB

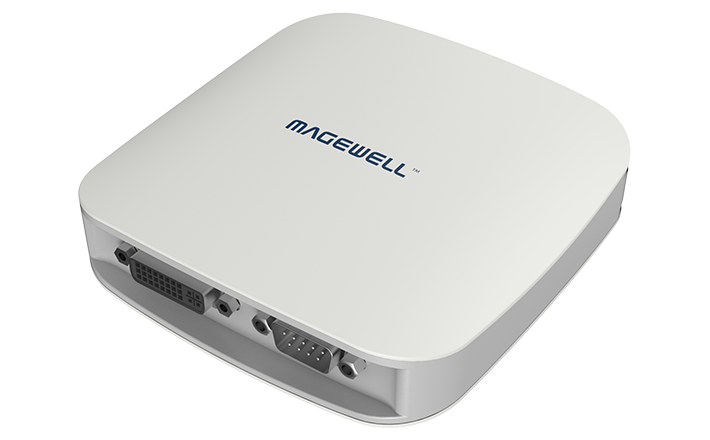

Two-channel HD capture box

Part number: 20111

Captures the following:

  • DVI/HDMI/Component/VGA+ analog audio and/or
  • Composite x4 + analog audio

INTERFACE

SPECIFICATIONS AND FEATURES

Interface

Interface

Input Interface

  • DVI-I x1
  • DB9 x1
  • Support input resolution up to 1920×1080 pixels

Host Interface

  • USB 3.0
VideoEngine

Video Engine

8-bit video processing

Deinterlace

Cropping

Color Adjustment

Color Space Conversion

Up/down Conversion

Mirror and Flip

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux

Included Software

  • Capture Express

Compatible Software

Others

Multiple Devices on One Host

Continuously Work for 24hx7

LED Status Indicator

Windows SDK

1-year Warranty

DRIVER
driver
document document Download

V1.1.0.818

History version Arrow Arrow

24.4 MB | 2015.07.20 | Windows 7 and later

Descriptions:

The package includes drivers for the first generation products, including XI100XE, XI200DE-HDMI, XI400DE-HDMI, XI100DE-SDI, XI200DE-SDI, XI400DE-SDI, XI102XE-HD, XI204XE, XI104AE, XI100XE-PRO, XI100XE-PRO-LP, XI006AE-PRO, XI104XUSB, XI200XUSB, XI006AUSB, XI100XUSB-PRO.

FIRMWARE
Firmware
document document Download

First Generation Capture Cards and Boxes Firmware

History version Arrow Arrow

8.45 MB | 2015.07.20

Descriptions:

The package includes firmware for the first generation products, including XI100XE, XI200DE-HDMI, XI400DE-HDMI, XI100DE-SDI, XI200DE-SDI, XI400DE-SDI, XI102XE-HD, XI204XE, XI104AE, XI100XE-PRO, XI100XE-PRO-LP, XI006AE-PRO, XI104XUSB, XI200XUSB, XI006AUSB, XI100XUSB-PRO.

TOOLS
Tools
History version Arrow Arrow

21.85 MB | 2016.12.09 | Windows 7 and later

Descriptions:

* USB Capture Utility V2 is for USB Capture Gen 1 only.

DOCUMENTS
Documents Product Catalogue
English | 37.9 MB | 2017/08/29
Documents First Generation Capture Device Documents
English | 14.7 MB | 2015/07/20
ACCESSORY

Included

DVI-I breakout to HDMI+ YPbPR

Part number: 90010

DB9 switch cable to 4-channel CVBS + 2-channel stereo audio

Part number: 90021

DVI-I switch adapter to VGA

Part number: 90011

USB3.0 cable

Part number: 90062

Optional

Mini Repeater 4K HDMI
