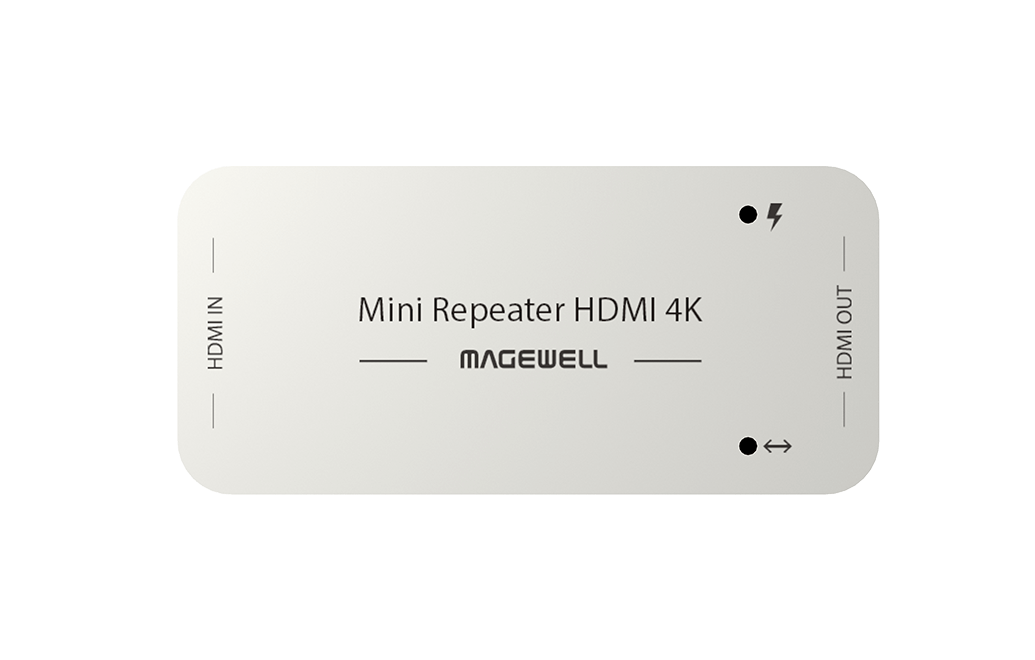

Mini Repeater HDMI 4K
Problems to solve:
The HDMI cable is not long enough;
The captured image flashes, shows a wrong color or the “unsupported signal” prompts.
Part number: 43010
Enhances signals and extends transmission distance
Fixes the corrupted signal
Supports HDMI 2.0

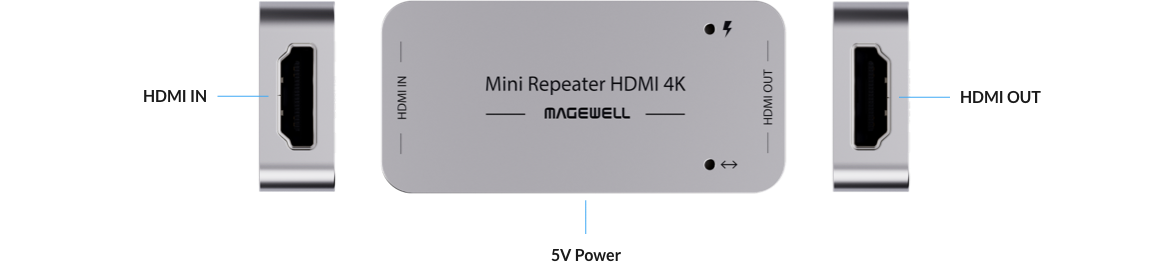

Interface
Specifications and Features
Input interface
HDMI Type A
Input signal
HDMI/DVI-D
Output interface
HDMI Type A
Compatible with HDMI 2.0
Compatible with DVI standards
Support 3D, 4K x 2K, HDCP 1.x/2.x
Support up to 597MHz pixel rate
Support up to 6.0 Gbps HDMI data rate
Receive and equalize signals
Eliminate signal dithering
Provide DDC buffer
Powered by HDMI signal or external power supply (5V)
Onboard LED shows the status of input/output
Power: +5V
Size: 58.22 mm x 27.26mm x 10.80 mm
Accessory: USB to 5V cable
Max Cable Length Supported
(Magewell used JCE HDMI cables for tests)
For 4K signals
10m (32 feet) cable can be supported for both input and output.
For 2K signals
20m (65 feet) cable can be supported at both the input and output.
*Note: Please make sure that HDMI cables of high quality are used to ensure max transfer length and best capture experience.
