Control Hub supported Channel I/O

Control Hub provides streaming function that transmits and receives data.

Supported inputs list as below.

  • Use the created channel as a RTMP/SRT streaming server.

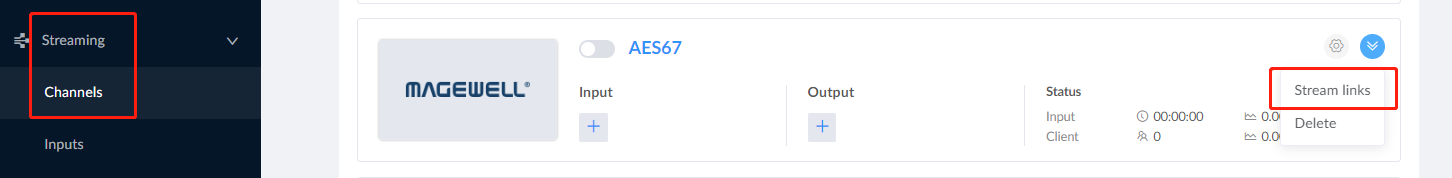

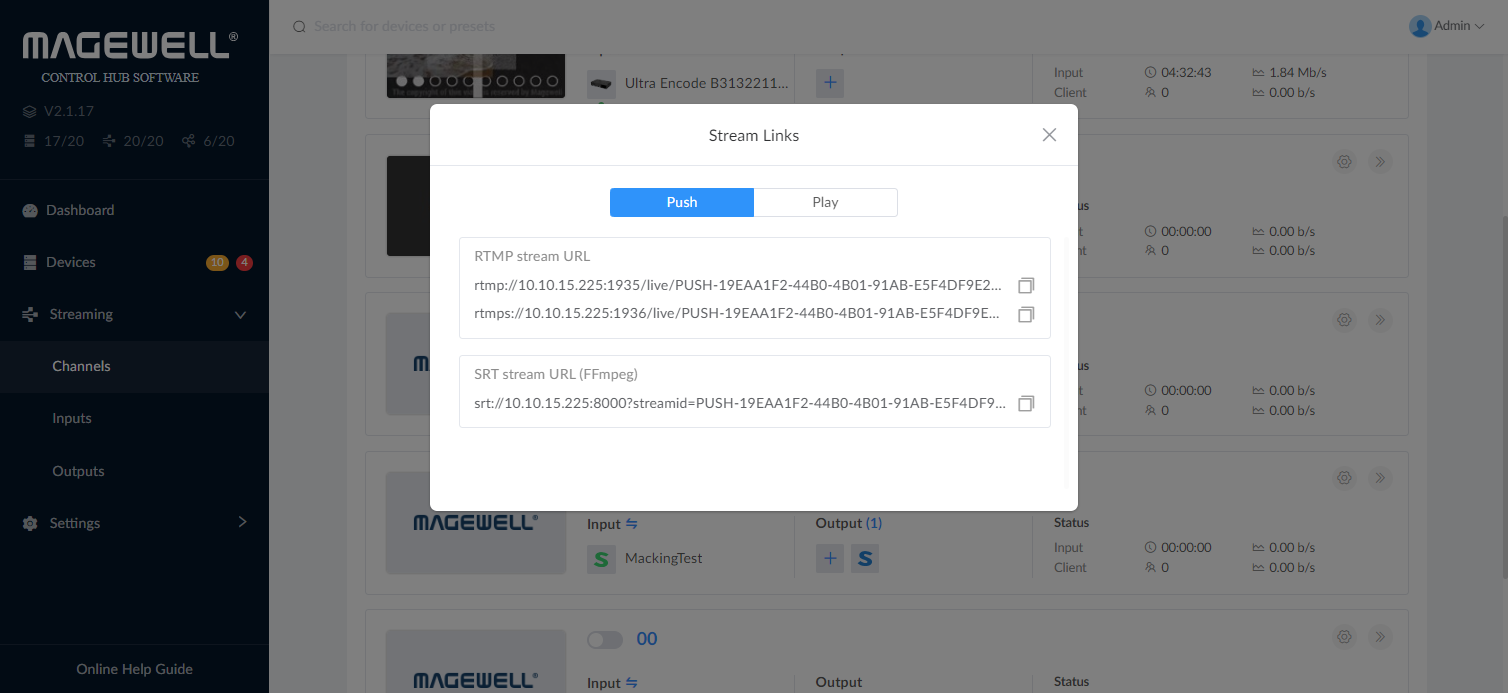

    1. Get stream links as below in the "Streaming > Channels" tab after creating the channel.

    The "Push links" of the channel fail after you add an input source, but the "Play links" still work.

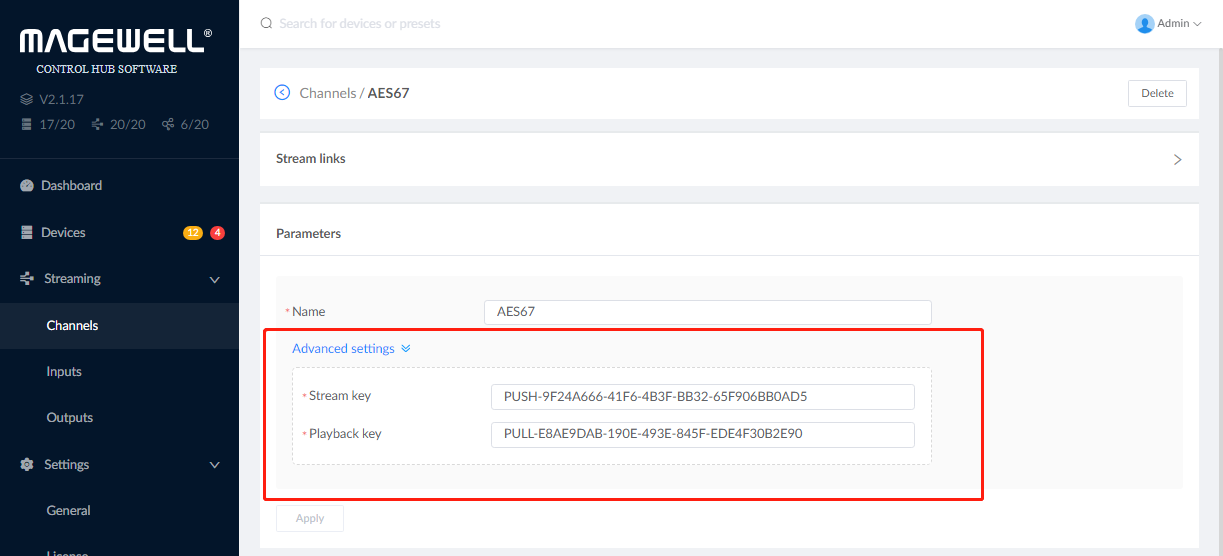

    2. Custom Stream Key

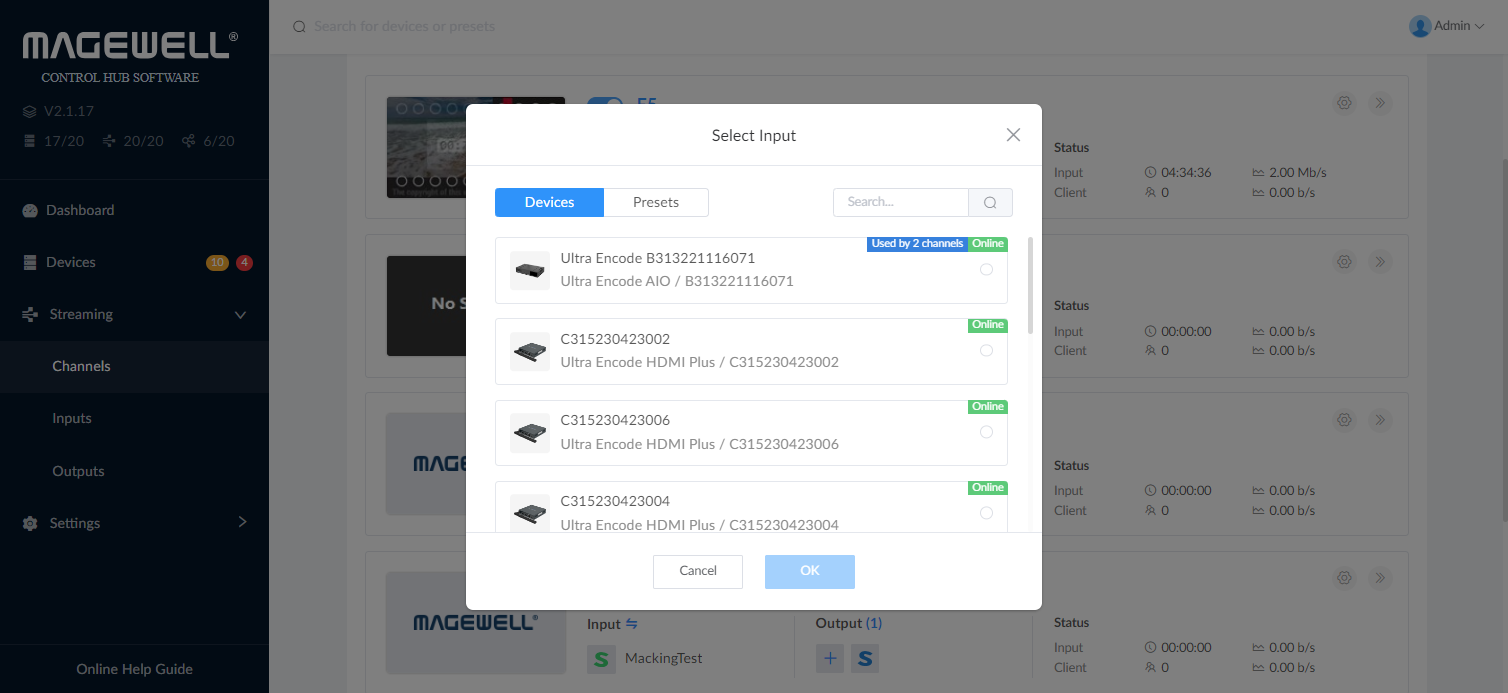

  • Hosted devices.

    Check supported hosted devices in this page.

  • Input presets.

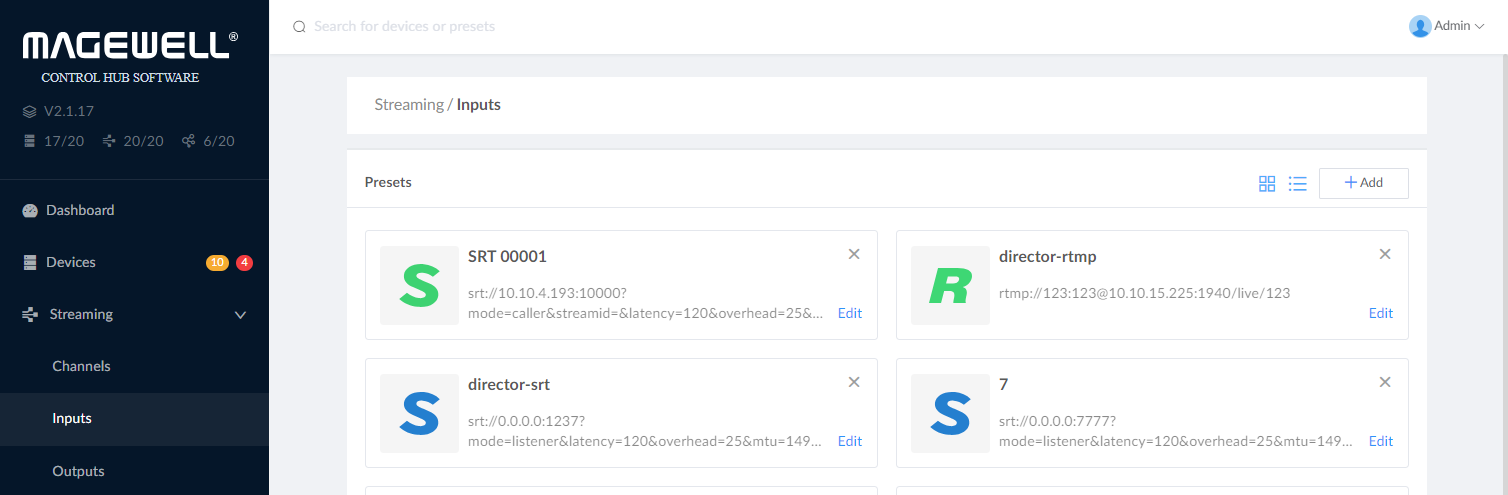

    1. Manage input presets in the "Streaming > Inputs" tab.

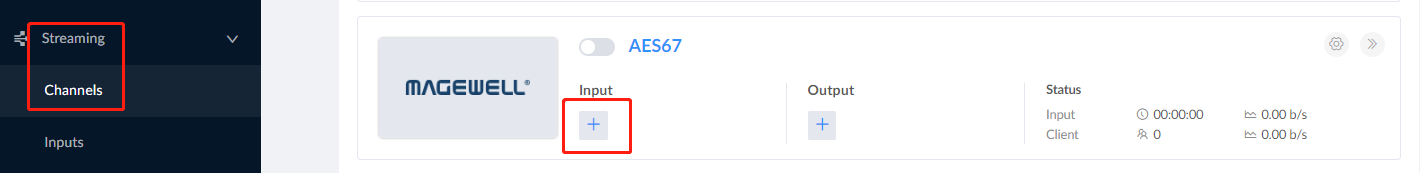

    2. Add an input preset for your channel in the "Streaming > Channels" tab.

Supported outputs list as below.

  • Use the created channel as a RTMP/SRT streaming server.

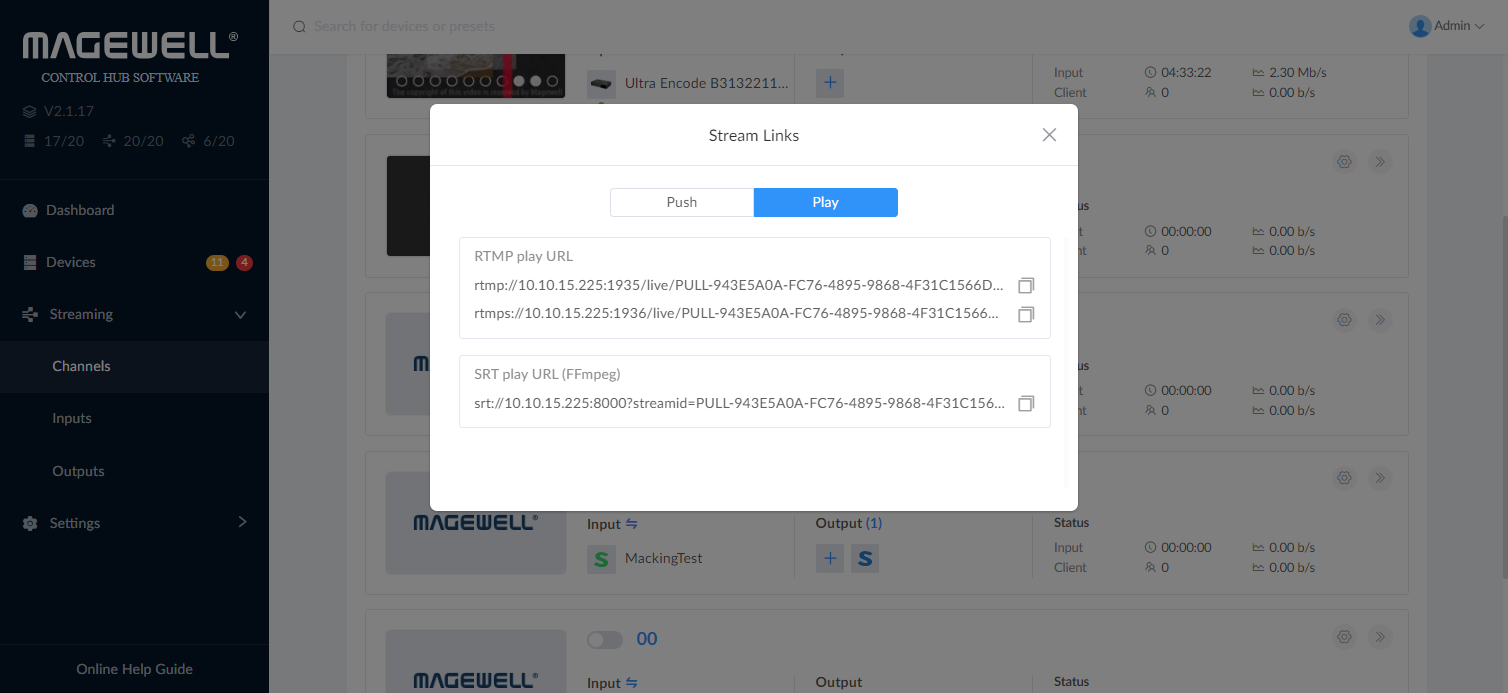

    1. Get play links as below in the "Streaming > Channels" tab after creating the channel.

    2. Custom Stream Key

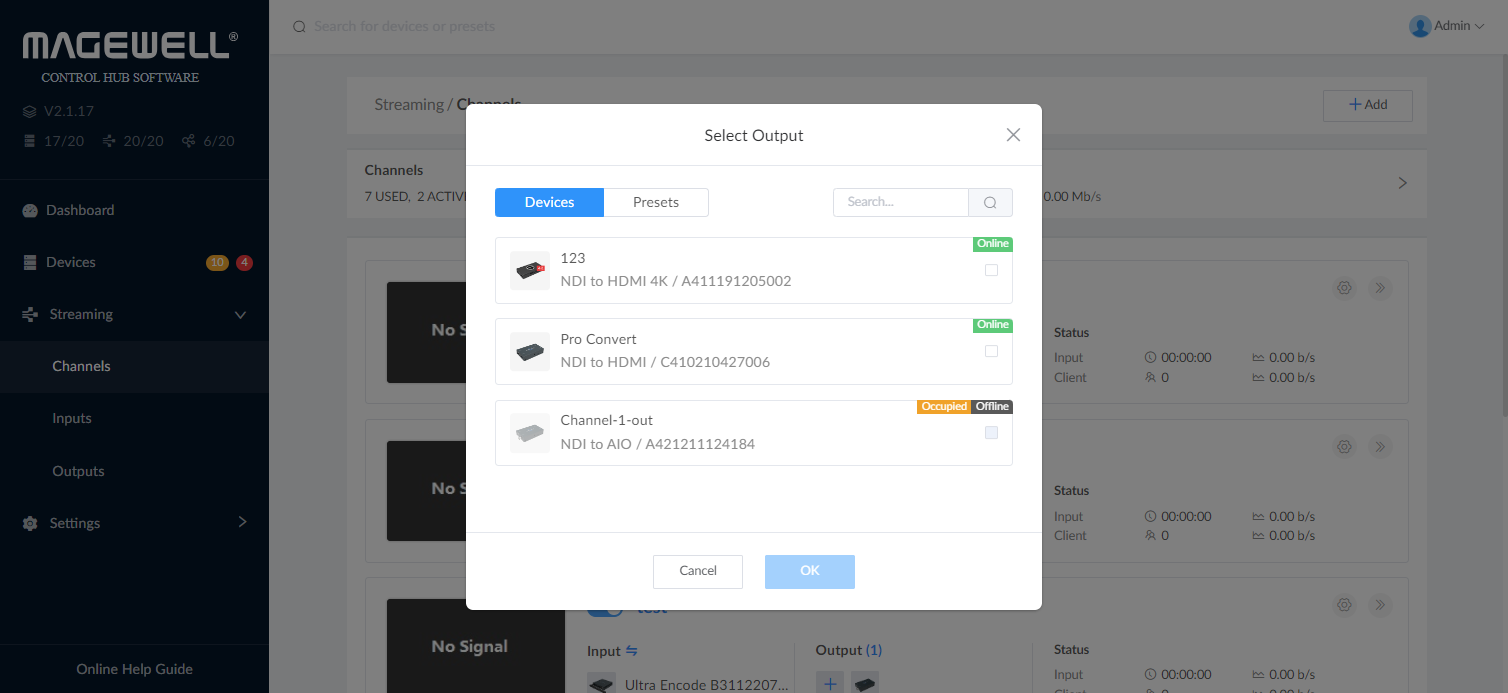

  • Hosted devices.

    Check supported hosted devices in this page.

  • Output presets.

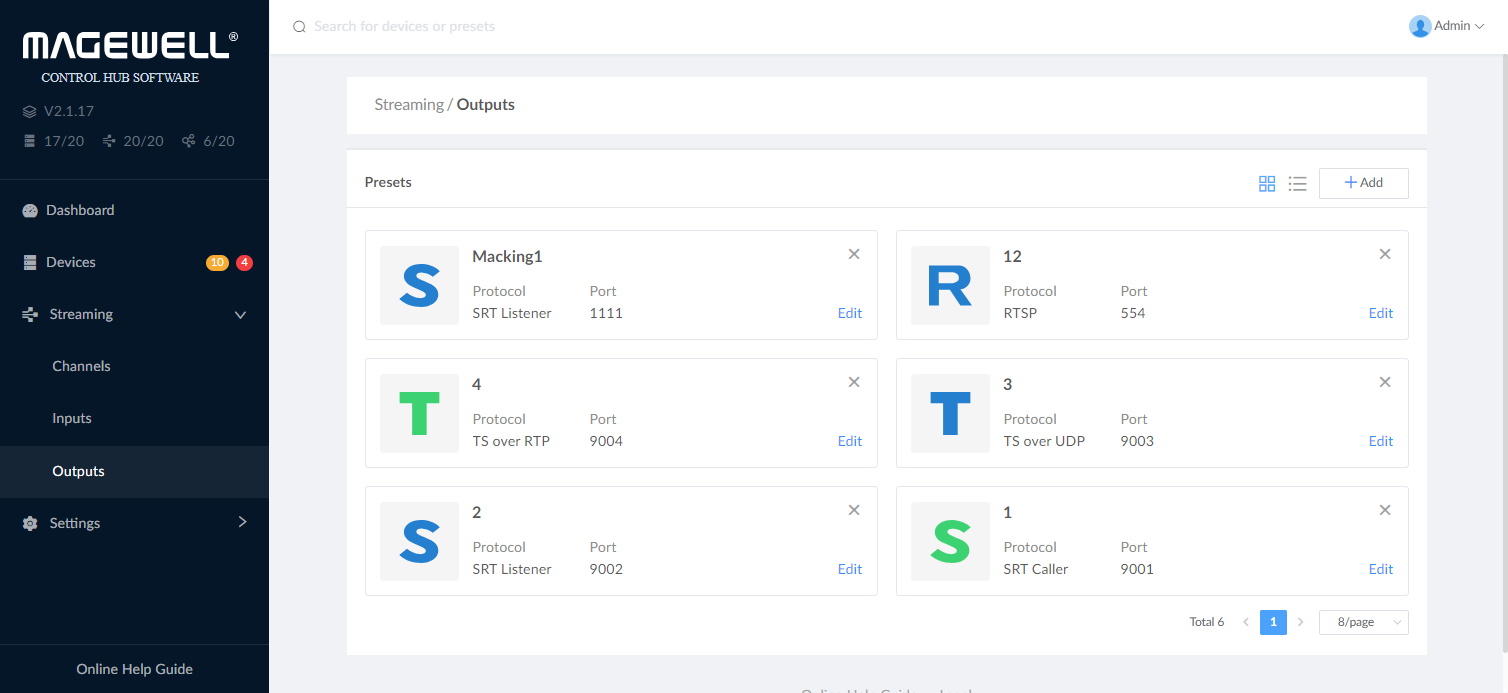

    1. Manage output presets in the "Streaming > Outputs" tab.

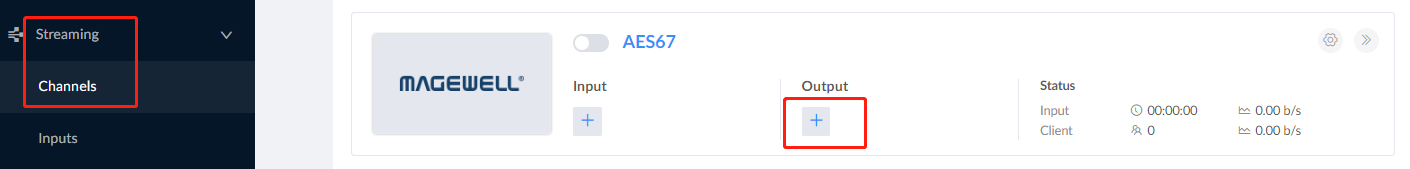

    2. Add an output preset for your channel in the "Streaming > Channels" tab.
