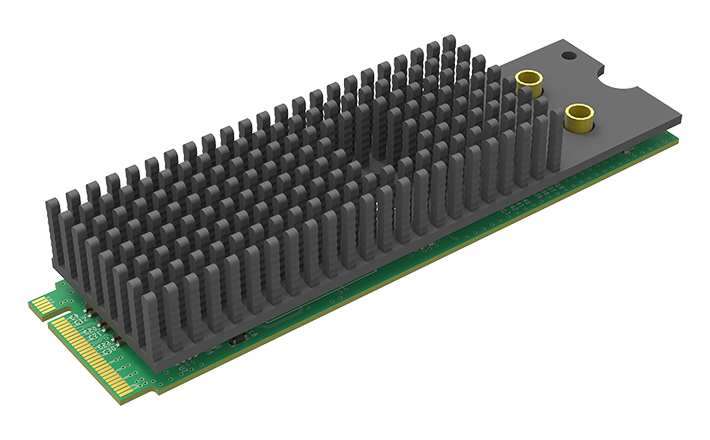

Eco Capture Dual SDI M.2
Eco Capture Dual SDI M.2

Two-channel 2K capture card

Part number: 11530

SKU: 115300000

  • Captures SD/HD/3G/2K SDI x 2 + embedded audio

Interface

Specifications and Features

Interface

Input Interface

  • SD/HD/3G/2K SDI x2
  • Support input resolution up to 2048×1080 pixels

Host Interface

  • M.2 (PCIe Gen2 x2)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams
  • Closed caption (SDK required)

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number
Full specifications and features
Driver
driver
document document Download

V1.3.0.4366

History version Arrow Arrow

4.34 MB | 2023.12.05 | Windows 10/11 series

Descriptions:
  • Add support for Eco Capture HDMI 4K Plus M.2.
  • Add support for Eco Capture 12G SDI 4K Plus M.2.
driver
document document Download

V1.3.0.4210

History version Arrow Arrow

4.17 MB | 2020.11.24 | Windows 7/8/8.1 series & Server System

Descriptions:
  1. Add support for Eco Capture QL-SDI 4K M.2.
  2. Add support for Eco Capture SDI 4K Plus M.2.
driver
document document Download

V1.4.256

History version Arrow Arrow

2.41 MB | 2025.02.11

Descriptions:
  1. Fix the compatibility issue of the kernel driver for RHEL8.9.
  2. Fix the issue that driver installation on a Linux 6.4 ~ 6.8 kernel system may fail.
  3. Support the installation of drivers in a Secure Boot environment.
driver
document document Download

V1.4.47

History version Arrow Arrow

2.12 MB | 2020.08.19 | Linux, ARM TX1

Descriptions:
  1. Fix problem: driver installation may fail on an operating system with kernel version 5.7.
driver
document document Download

V1.4.256

History version Arrow Arrow

2.22 MB | 2025.02.11

Descriptions:
  1. Fix the compatibility issue of the kernel driver for RHEL8.9.
  2. Fix the issue that driver installation on a Linux 6.4 ~ 6.8 kernel system may fail.
  3. Support the installation of drivers in a Secure Boot environment.
Firmware
Firmware
History version Arrow Arrow

7.94 MB | 2024.01.18

Descriptions:

Applicable products: Eco Capture Dual SDI M.2, Eco Capture HDMI 4K Plus M.2, Eco Capture 12G SDI 4K Plus M.2

  1. Add support for Eco Capture HDMI 4K Plus and Eco Capture 12G SDI 4K Plus M.2.
  2. Fix the issue of unable locking the video signal from some signal sources.



* To use the firmware in Linux environment, follow the instruction below:

  • Method 1: In Windows environment, use the Windows upgrade tool in the zip package to upgrade the firmware, and then use the card in Linux environment after upgrade.
  • Method 2: Download the Linux upgrade tool, put the *.swf file in the Windows upgrade toolkit into the Linux update tool directory, and upgrade the firmware in Linux environment.
Firmware
History version Arrow Arrow

3.15 MB | 2019.04.12 | Linux

Descriptions:

Initial release.

* for Eco Capture Dual SDI M.2, Eco Capture Quad SDI M.2 capture devices.

Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Download
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Download
Accessories

Included

2 x MMCX to SDI breakout

Part number: ACC00052
