Extremely Portable Design

Capture and Combine

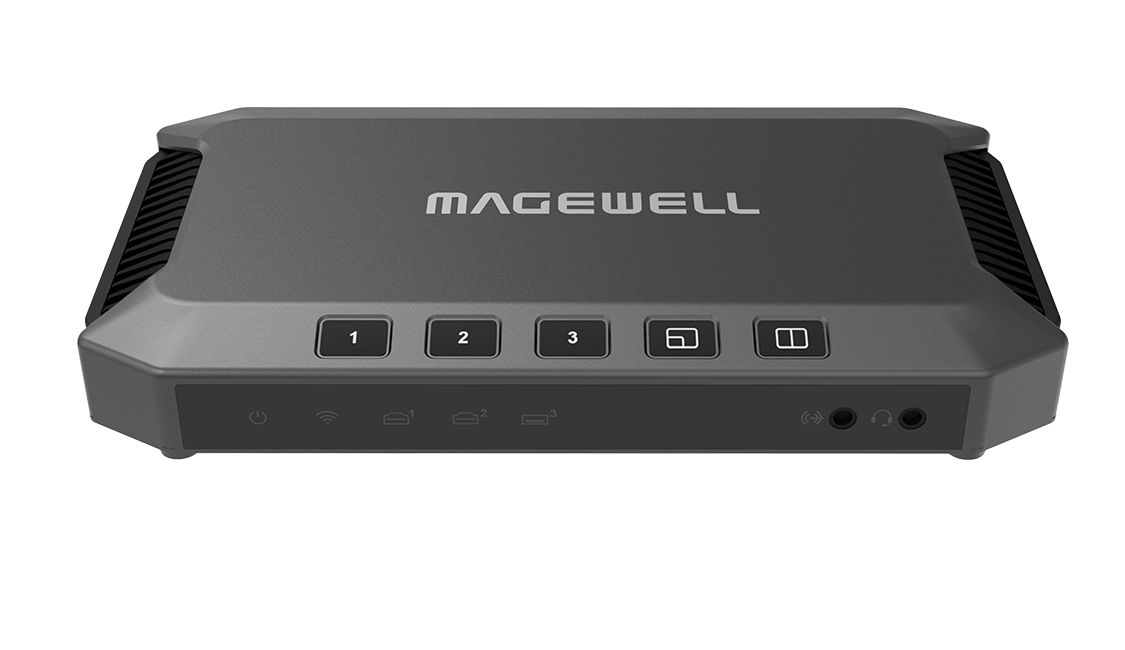

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.

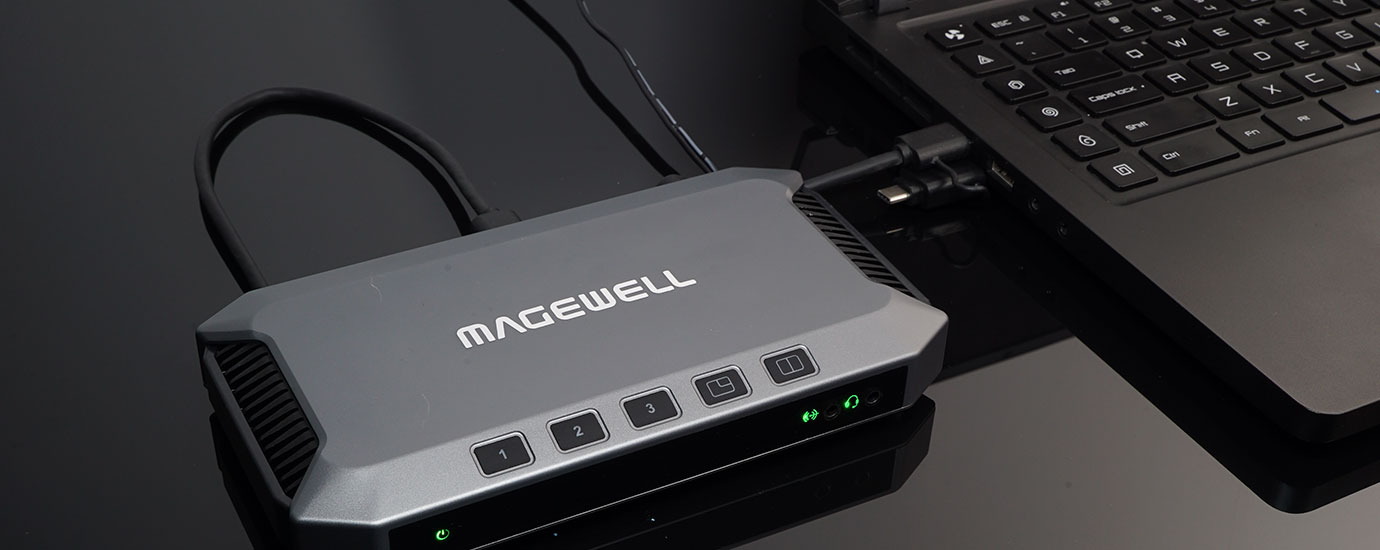

Easy Setup and Flexible Features

As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.

Engaging Presentations

Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.

Switch Scenes Side-by-Side Play Music Handwrite Screenshot

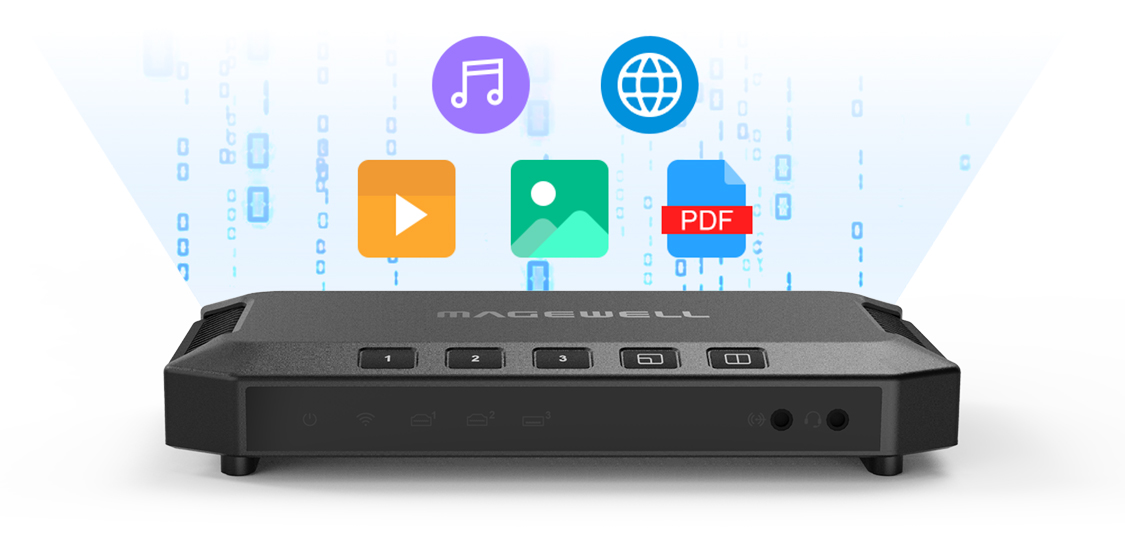

Flexibly Incorporate Media Files

Users can import media files including images, video clips, background music, PDFs and web pages into USB Fusion’s 128GB built-in storage for incorporation into their presentations.

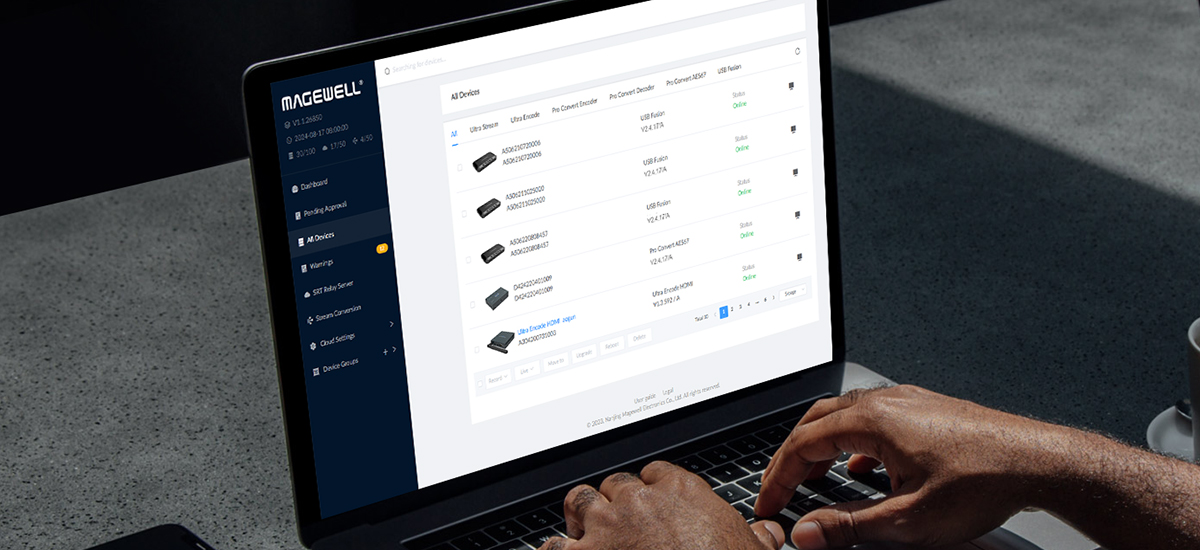

Configure Through Web GUI

Users or administrators can configure and manage the hardware through its built-in web GUI.

Product Info

USB Fusion

Combines live video sources for a more engaging presentation

SKU: 350600000

  • Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
  • Switches between sources or combines two simultaneously into one output
  • Companion tablet app for more advanced features

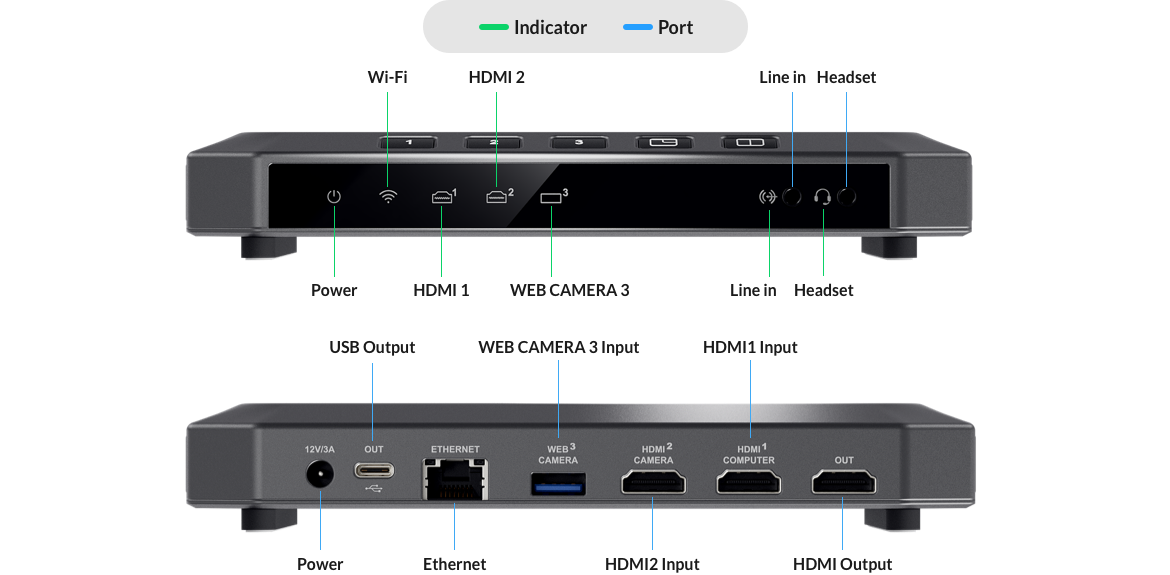

Interface

Specification and Features

Interface

Input Interface&Output Interface

  • 2x HDMI 1.4 Type-A input
  • 1x USB 3.0 Type-A input
  • Supports input resolution up to 1920x1080p, 60fps
  • 1x USB 3.0 Type-C output
  • 1x HDMI 1.4 Type-A output

Audio Input&Output Interface

  • 3.5mm audio jack for line in and headset

OS

  • Windows, Linux, Mac

Included Software

  • USB Fusion App

Compatible Software

  • Skype, Zoom, Microsoft Teams, etc.

Others

  • Automatic, driver-free installation for plug-and-play
  • On-device buttons and LED status indicator
  • 2-year warranty
  • Form factor: 186mm (L) x 101.2mm (W) x 30mm (H)
Firmware
Firmware
document document Download

V2.0.7

History version Arrow Arrow

235 MB | 2022.09.06

Descriptions:

* Note: For V1.1.344, please update to V1.1.400 at first and then update to this release.

  1. Support connecting Magewell Cloud, two instances at most.
  2. Support uploading/downloading/deleting/previewing PDF files, adding them as scenes and implementing operations such as previewing and turning pages.
  3. Support adding/deleting web page sources, adding them as scenes and implementing operations such as previewing, going forward and backward.
  4. Support adding pictures and texts as watermarks and applying them into the presentation, and support editing and deleting watermarks.
  5. Support importing/exporting presentations.
  6. Support changing USB C connection name.
  7. Support adjust audio offset of the device connected to the WEB CAMERA port.
  8. Enhance recording properties, including selecting the source to record and whether to record audio, advanced settings of encoder, customizing file name, splitting file by time or size, etc.
  9. Optimize the function of the picture-in-picture button.
  10. Optimize the function of the side-by-side button.
  11. Support previewing imported music.
  12. Fix the sound issue with Logitech H340 headset.
  13. Fix the sound capture issue with ROCWARE RC08 PC camera.
  14. Fix known issues.
Documents
Documents User Manual for USB Fusion
English | 7.05 MB | 2022/09/06
Documents Quick Start Guide for USB Fusion
English | 1.19 MB | 2022/08/19
Accessory

Included


Power Adapter x1

Part number: ACC08019

USB 3.0 cable x1

Part number: ACC10007
