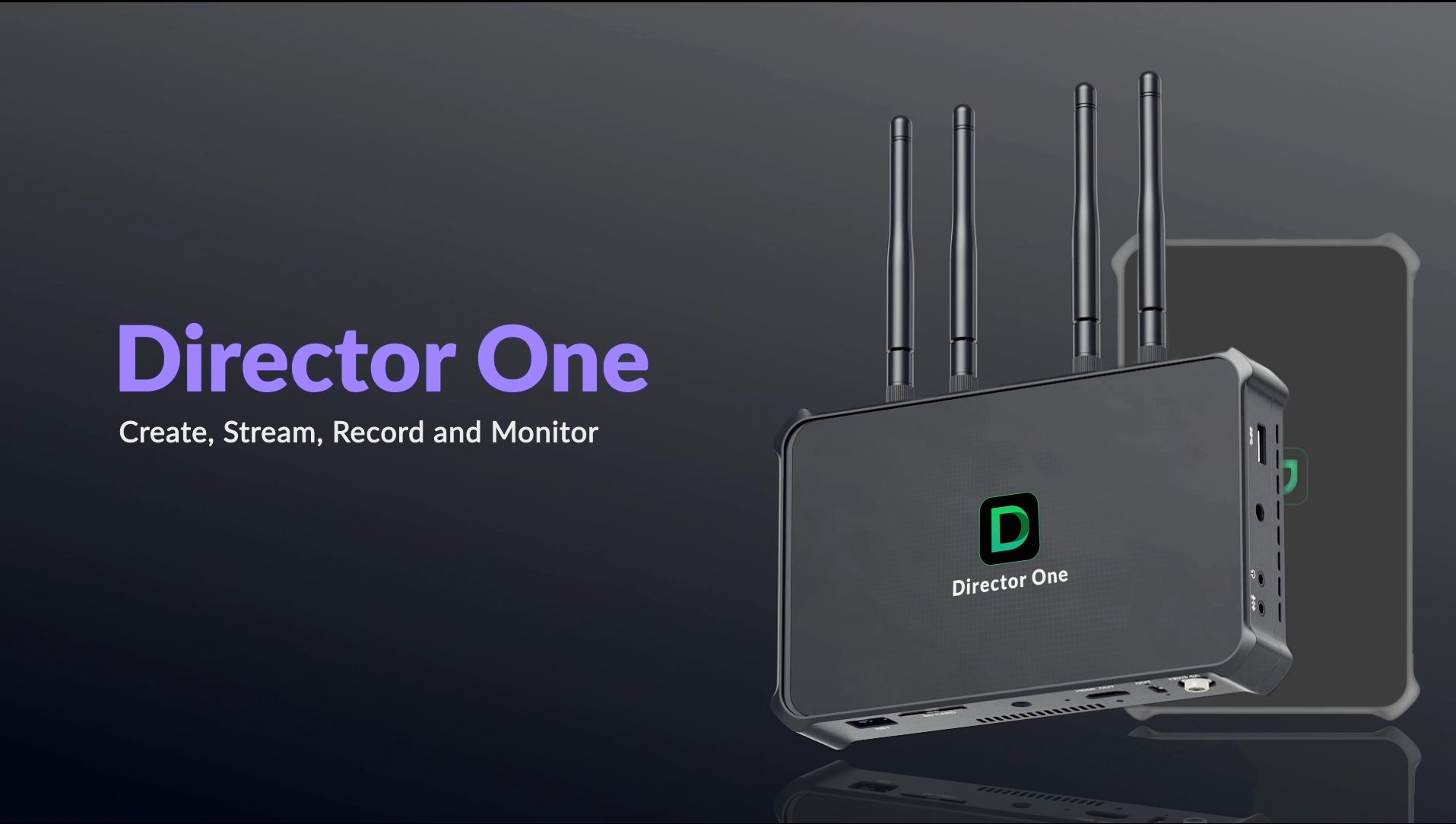

Director One
Combining multi-input switching, graphics, streaming, recording, and monitoring in one powerful device,
Director One boasts a large 7" touchscreen that provides an expansive view for seamless control and
monitoring. Equipped with a built-in 4G modem and both 4G and WiFi antennas, Director One ensures users have
stable and reliable network connectivity anytime, anywhere. Designed for versatile production needs, Director
One enables operators to produce live events and remote feeds with enhanced visibility and ease.

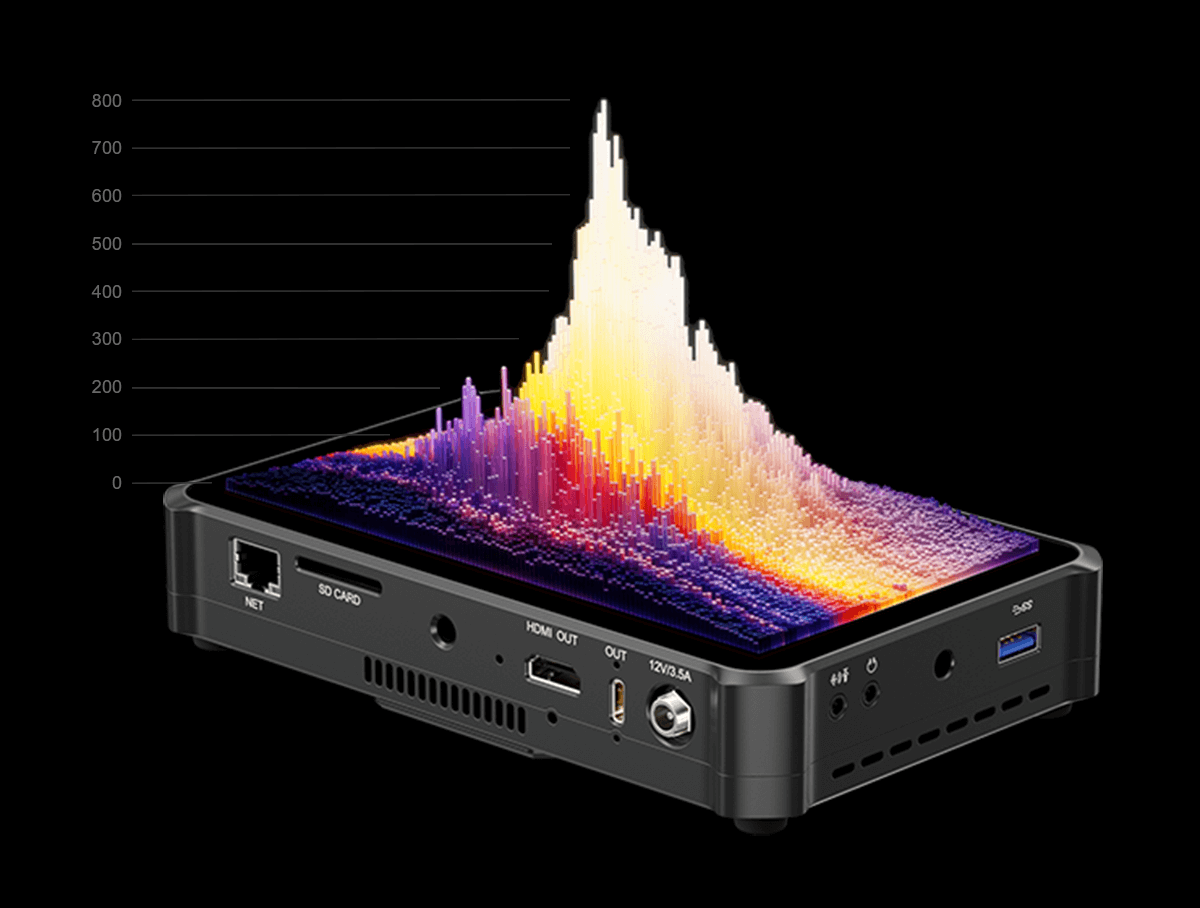

Experience Every Detail with the Stunning 7’’ AMOLED Display
Director One is equipped with a premium 7’’ AMOLED touchscreen, delivering vibrant visuals with 800-nit
brightness, a remarkable 100,000:1 contrast ratio, and a selectable refresh rate of 50Hz or 60Hz. Whether in
bright sunlight or low light, Director One’s display ensures crystal-clear visibility and lifelike color
accuracy, providing a seamless experience for capturing every moment with precision.
7”
Larger Size
800Nit
Brightness
50/60Hz
Refresh Rate
100,000:1
Contrast Ratio
Stay Connected Anywhere with Integrated 4G and WiFi
With a built-in 4G modem and dedicated 4G and WiFi antennas, Director One offers users flexible networking anywhere. Integrated bonding support enables stable and reliable connectivity wherever you are. From remote
locations to bustling events, Director One keeps you seamlessly connected, ensuring uninterrupted streaming
and control for a flawless production experience.
4G Modem
Integrated
Antennas*4
4G/Wi-Fi
Ethernet
Wi-Fi
External USB Modem
Network Bonding
USB Tethering
Ethernet
Network Bonding
Wi-Fi
External USB
Modem
Modem
USB Tethering

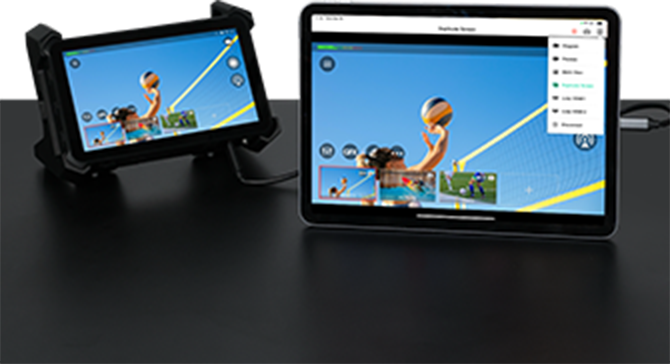

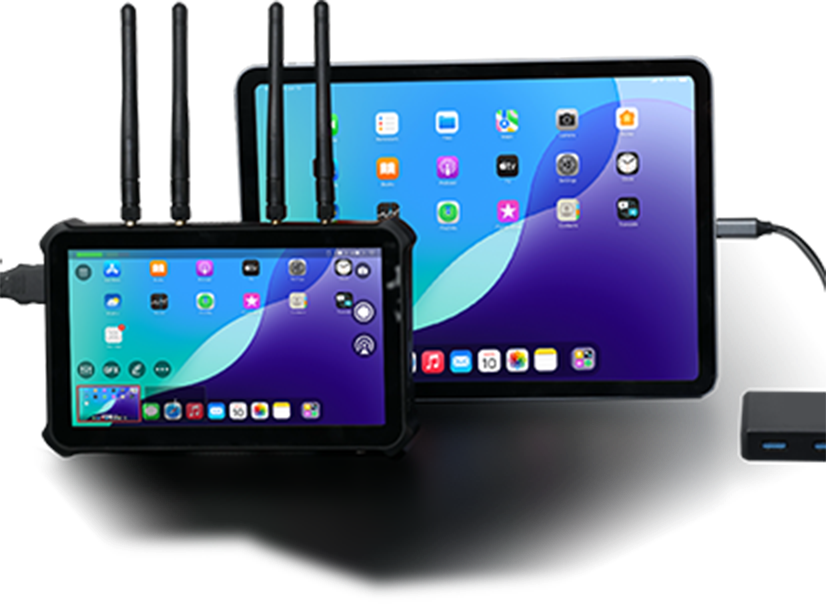

Expand Your View with HDMI Output
Director One features an HDMI output port, making it easy to connect to an external screen for a larger
display experience. Connected touchscreen displays can even control the Director One in reverse, providing
an intuitive and flexible way to manage productions.
Incredible Input Source Flexibility
Users can switch between two HDMI inputs and two USB AV inputs as well as three simultaneous live IP sources including SRT streams, RTMP streams, RTSP streams, NDI® High Bandwidth and NDI® HX sources. Users can bring in up to three NDI sources simultaneously, one of which can be used as a motion graphics overlay with NDI alpha channel. HTML webpages and file-based media assets including video, audio and images can also be combined freely with live sources.
Flexible Layouts and Powerful Production Tools
Users can define multiple scenes that combine live video and audio inputs with network streams, media sources and graphics, then switch or transition between these scenes on the fly. Director One also offers multi-source scene layout presets, making it easier and faster for content creators to produce engaging multi-camera event streams. Production tools including chroma keying, graphics and telestration further enhance your content.
Winning Features for Superior Sports Streaming

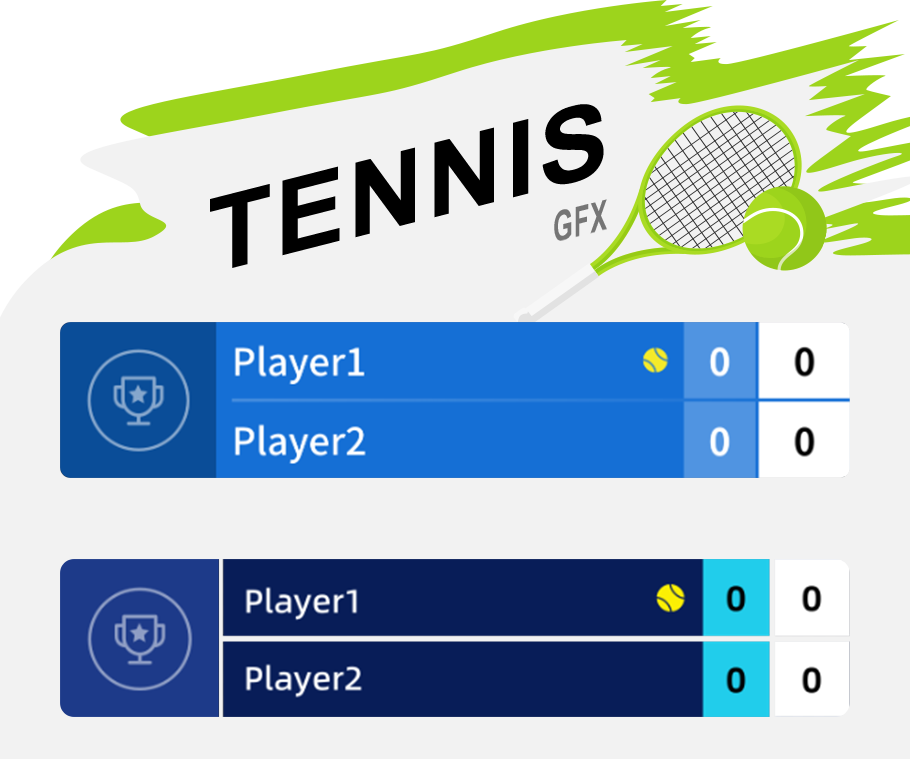

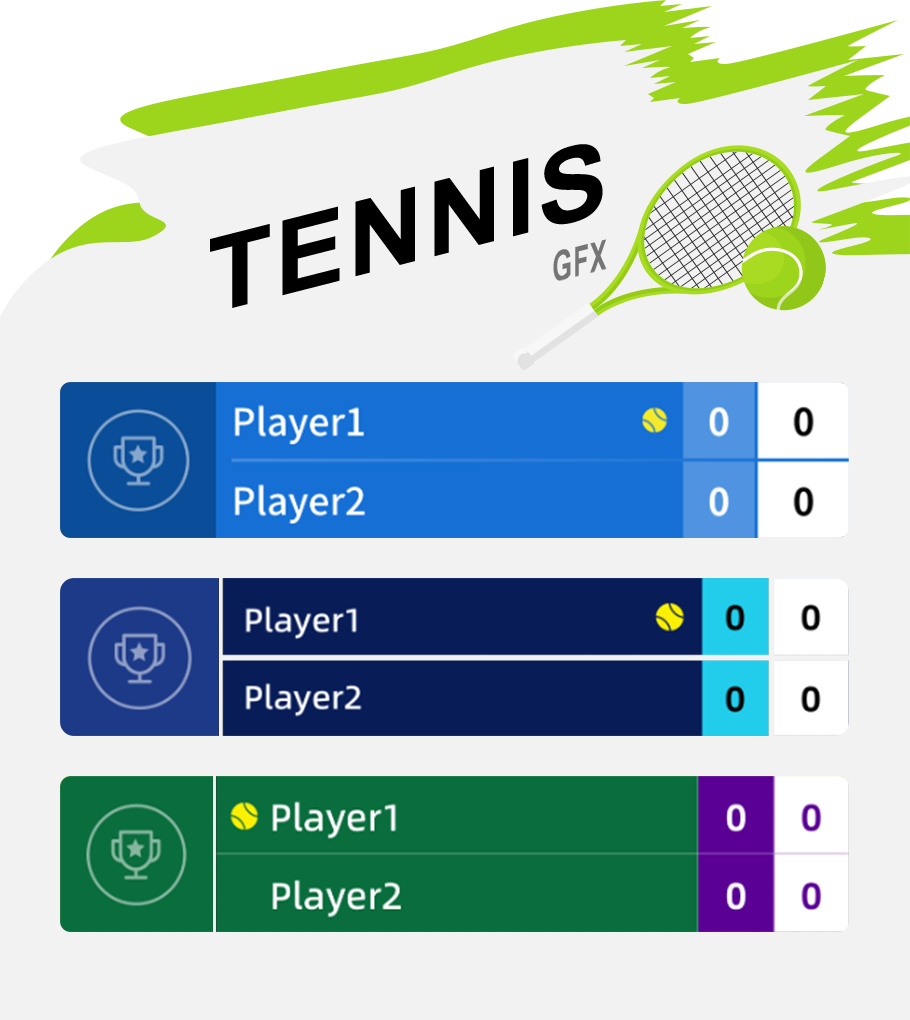

Integrated scoreboard graphics
Telestration

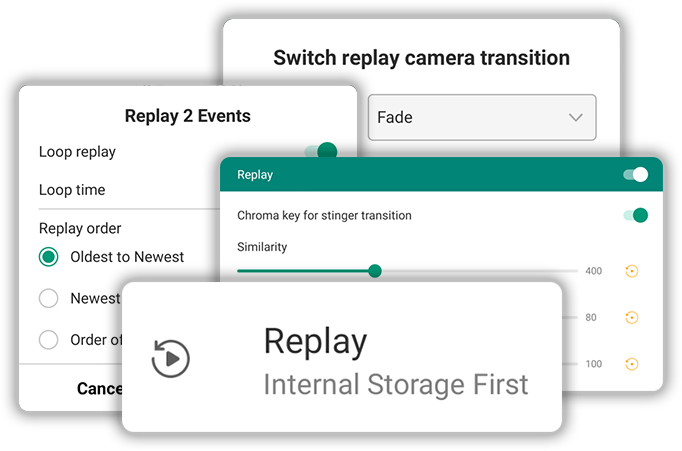

Replay
Live HTML graphics
Network bonding
High-quality Streaming and Recording
Director One can encode video up to 1080p at 60 frames per second and bitrates up to 30Mbps. Productions can
be streamed via RTMP to popular platforms such as YouTube™ Live, Facebook™ Live, or custom destinations. SRT
output supports high-quality remote production workflows, while NDI® HX3 output is ideal for
local IP-based production. Content can also be recorded to an SD card or the device’s internal storage.
Two-channel ISO recording lets users choose from the program output, HDMI inputs or USB inputs.
Stream Everywhere
ISO Recording
Record to Local Storage
or SD card
or SD card
Swipe left to see more
Stream Everywhere
ISO Recording
Record to Local Storage
or SD card
or SD card
Control Your Content Creation the Way You Want
Director One lets users easily produce engaging multi-camera content through an intuitive touchscreen
interface and a flexible array of additional powerful control options.
Built-in 7" AMOLED touchscreen
External touchscreen monitor with Touch Function port

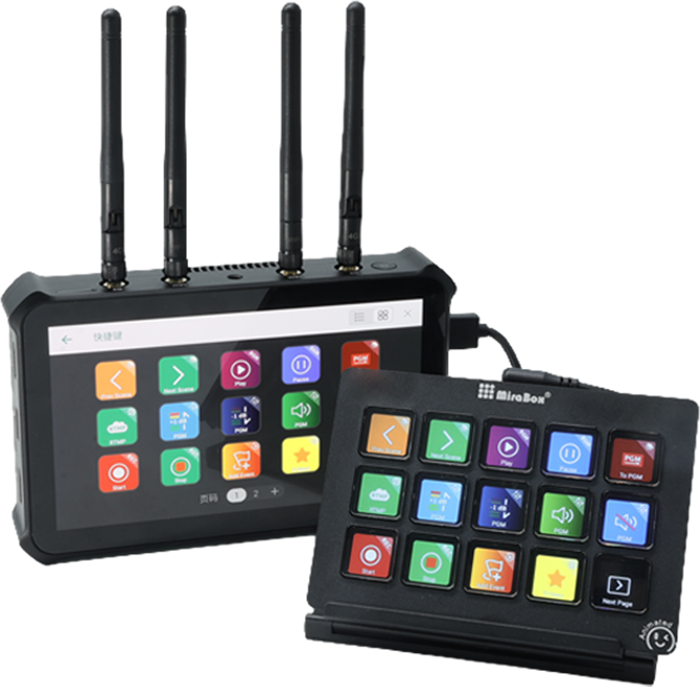

USB or Bluetooth devices such as X-Keys to trigger Shortcuts
Ideal for Production in the Studio or in the Field
Director One can be powered with the included power adapter but also supports two NP-F hot-swappable
external batteries (not included), enabling it to be used anywhere and ensuring uninterrupted power for long
productions. The device will preferentially use the battery with a higher charge. If the two batteries have the same charge level, they will supply power to the device simultaneously.
Enhanced Performance and Reliability with Director One’s Upgraded Features!
Advanced cooling design keeps Director One running smoothly for reliable and
stable operation even during extended use.

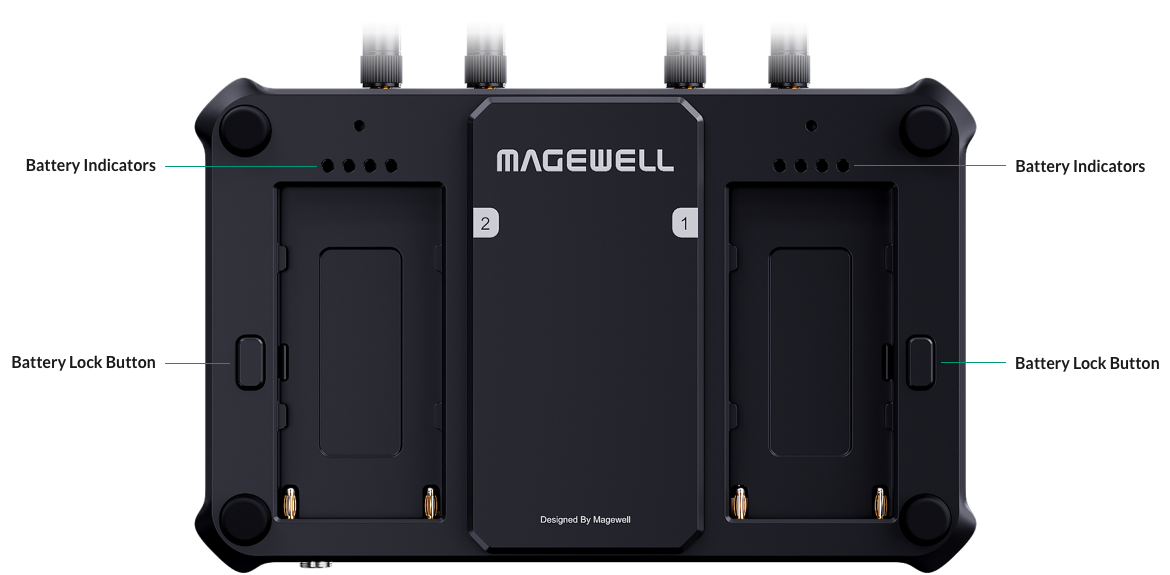

Four LEDs for each NP-F battery socket can be configured as battery indicators
or NDI tally lights, ensuring clear status visibility at a glance.
Locking connectors secure your connections, keeping your setup firmly in place
for uninterrupted production.
Four LEDs for each NP-F battery socket can be configured
as battery indicators or NDI tally lights, ensuring clear status visibility at a glance.
Advanced cooling design keeps Director One running
smoothly for reliable and stable operation even during extended use.
Locking connectors secure your connections, keeping your setup firmly in place for uninterrupted
production.
Choose Your Director Model
Touchscreen Size (Diagonal)
7" AMOLED
5.44" AMOLED
Cellular Connectivity
integrated 4G modem (SIM card not included)
via external USB modem (not included)
HDMI Inputs
2
2
USB Type A Inputs (webcams, etc.)
2
2
IP Video Inputs (NDI®, SRT, RTMP or RTSP)
3
3
USB-C Interface
configurable as UVC/UAC output (to software), MTP mode (file transfer)
configurable as DisplayPort video output (with external touchscreen compatibility; output to HDMI with
USB-C to HDMI adapter), UVC/UAC output (to software), MTP mode (file transfer)
Dedicated HDMI Output
√
No (can adapt USB-C interface to HDMI)
Product Info
Director One
Director One
A powerful device that does multi-input switching, graphics, streaming and more
SKU: 552600000
- 7" AMOLED touchscreen with 800 nits brightness and 100000:1 contrast ratio
- Supports flexible input sources ranging from AV and IP streams to media files
- Intuitive user interface and companion App for scene editing and creating shows
- Rich output possibilities including RTMP and SRT streams, NDI® HX and local displays

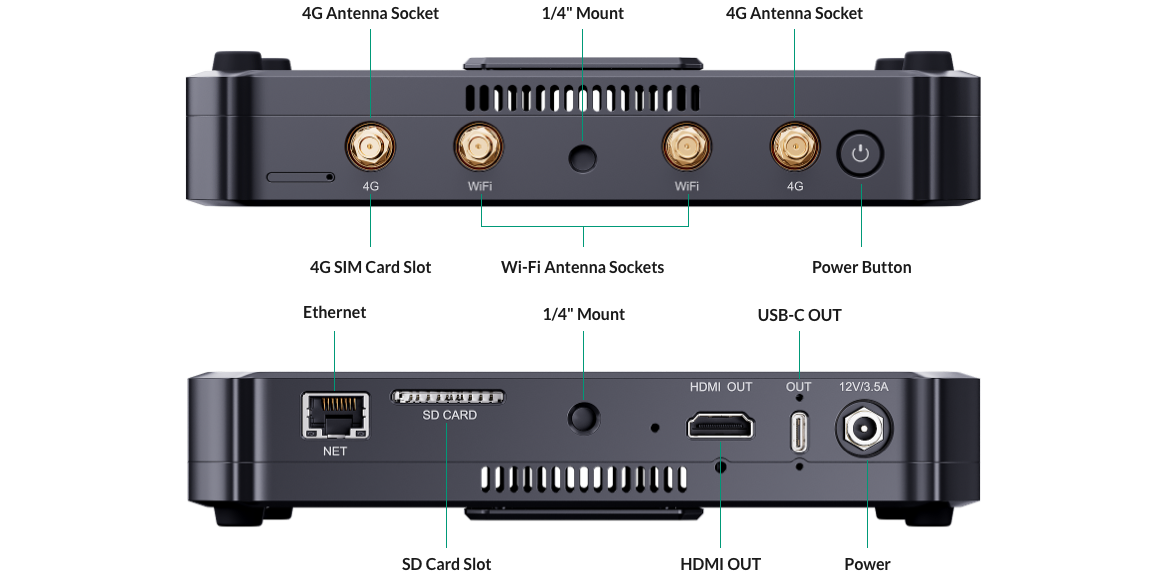

Interface
Specifications and Features
Inputs
- Two HDMI inputs
- Two USB AV inputs
- Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI® HX2, NDI® HX3)
- Mobile camera (via Director Utility App)
- Media files (video, image, music, etc.)
- Webpage Inputs
Features
- Shows can be created in landscape (16:9) or portrait (9:16) mode
- A show can consist of multiple scenes
- Supports multi-view composition in one scene, providing prebuilt layouts for easy creation
- Powerful production tools including chroma keying, graphics, telestration and more
- Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.
Streaming
- Natively support streaming to YouTube, Twitch and Facebook Live
- Stream via SRT, RTMP and NDI® HX3
- Supports customizing encoding parameters and selecting the encoding source for ISO streaming
- Supports streaming to two destinations simultaneously
Recording and screenshot
- Split recording files by time or size
- Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source
Included Software
Network
- Supports network bonding
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes are both supported
- Cellular: 1* 4G SIM card slot & USB modem supported
Others
- 7" AMOLED capacitive touchscreen
- Screen brightness 800nit, contrast ratio 100000:1
- Warranty: 2 years for the whole device, 1 year for the screen
- Form factor: 185.2mm (L) x 117.2mm (W) x 32.8mm (H) or 7.29in (L) x 4.61in (W) x 1.29in (H)
Plugins
Download
Descriptions:
Magewell Director Plugin for Stream Deck is designed to enhance production workflows by enabling seamless control of Director devices through Stream Deck, making the process significantly easier and more efficient. Read its online help for detailed introduction.
Documents
Quick Start Guide for Director One
Accessories
Included
Screw Locking Power Adapter (12V/3.5A) x1
Part number: ELE00067
4G Antennas x2
Part number: ELE00082
Wi-Fi Antennas x2
Part number: ELE00083
Sunhood x1
Part number: STR00169
Thumb Screws x2
Part number: MEC00038
USB-C to USB-A Cable x1
Part number: ELE00054
USB-A to USB-C Adapter x1
Part number: ELE00079
SIM Card Ejector x1
Part number: MEC00076
We recommend you always use the included accessories to avoid unnecessary damage to your device.
Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
