Pro Convert for NDI® to HDMI 4K Module
Pro Convert for NDI® to HDMI 4K Module

Decoding module for rack-mounted centralized deployment, converting a live IP stream into 4K HDMI signal

SKU: B41100000

  • A hot-swappable module to be installed in Modator Chassis
  • Supports NDI® High Bandwidth, NDI® HX2, or NDI® HX3 sources or H.264/H.265 streams
  • Centrally manageable via the Modator Chassis and Magewell Control Hub

*Magewell also offers the standalone form-factor of the same specification.

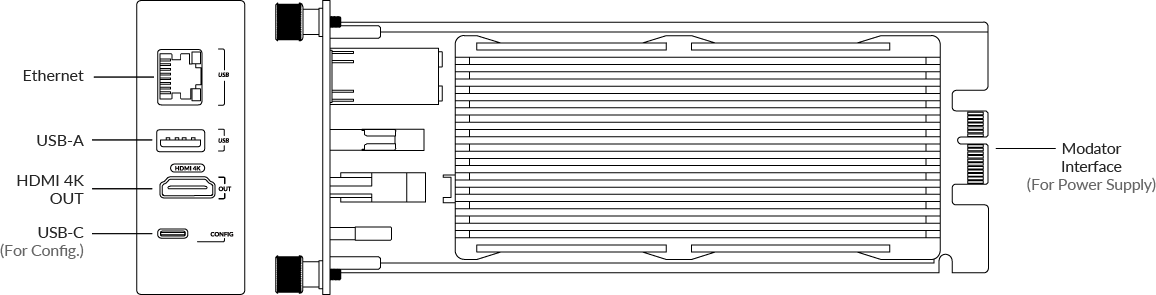

Interface

Specifications and Features

Output Features

  • Support for up to 4096x2160 60fps HDMI output
  • Support for 96KHz, 16-bit 8-channel audio streams

Decoding Features

  • Support for decoding 4Kp60 IP streams
  • Support for decoding NDI® High Bandwidth、NDI® HX2 and NDI® HX3
  • Discover NDI® devices across network segments
  • Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP
  • Support for NDI® 5.x
  • Support for decoding alpha channel

Others

  •  Very low latency
  • Configure through the touch screen of Modator Chassis, Web GUI or Control Hub
  • Image flip for inverted projector installations and safe area controls
  • Automatic output optimization for target display with integrated up/down conversion
  • HTTP-based APIs for custom integration
  • 2-year warranty
Full specifications and features
