Pro Convert SDI Plus Module
Pro Convert SDI Plus Module

Converts one-channel of 3G-SDI input signal into NDI® High Bandwidth with loop-through

SKU: B40410000

  • A hot-swappable module to be installed in Modator Chassis
  • Supports inputs up to 2048x1080 60fps with 16 channels of embedded audio
  • Centrally manageable via the Modator Chassis and Magewell Control Hub

*Magewell also offers the standalone form-factor of the same specification.

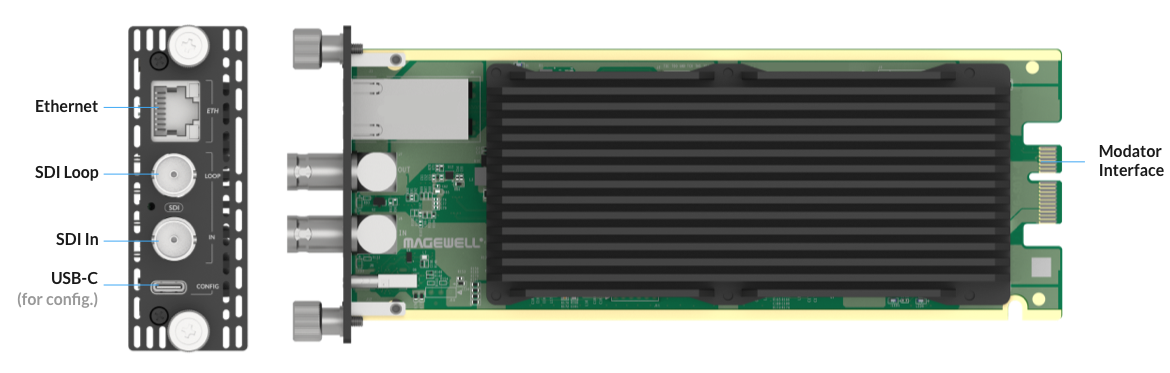

Interface

Specifications and Features

Input & Loop-Through Features

  • 3G-SDI input and loop-through
  • Support for up to 2048x1080 60fps input
  • Support for 16-channel SDI embedded audio inputs

NDI Encoding Features

  • Encode NDI High Bandwidth stream at up to 2048x1080 60fps 4:2:2 8-bit
  • Sends NDI streams across network segments
  • Remotely controls PTZ cameras using protocols of Visca UDP via NDI
  • Encodes 16-channel NDI-embedded audio
  • Support for NDI 6.3

Others

  • Very low latency
  • Configure through the touch screen of Modator chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration
  • 2-year warranty
Full specifications and features
Documents
Documents Quick Start Guide for Modator Modules
English | 688 KB | 07/30/2026
Download
What's Included
tag-icon

Pro Convert SDI Plus Module x1

Part number: B4041
