Ultra Encode HDMI
Ultra Encode HDMI

A Flexible & Affordable Universal Encoder

SKU: 531100000

  • Live H.264/H.265 streaming
  • Supports streaming protocols including SRT, NDI®|HX, HLS & more
  • Suitable for various network environment

* The former SKU (530400000, 530400001) has been discontinued . For any further questions, please consult the Magewell sales team.

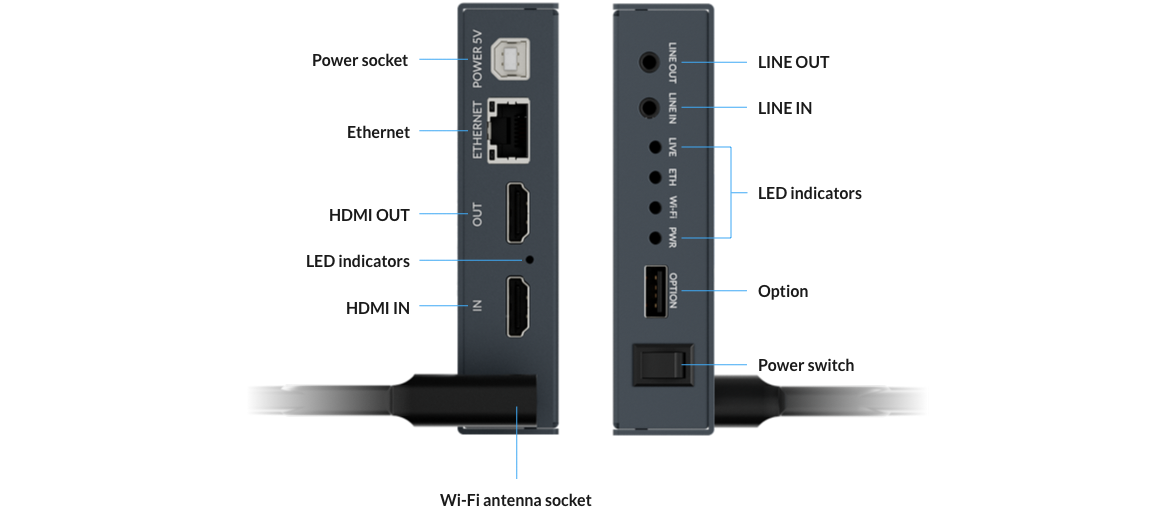

Interface

Specifications and Features

Input Features

  • Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
  • Support for 48KHz, 16-bit 8-channel audio streams
  • Input audio from 3.5 mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
  • Support for H.264/HEVC video encoding
  • Encoding 2-channel AAC at 48kHz, 16-bit

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)

Others

  • Internet connectivity via wired Ethernet and wireless network
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs
Full specifications and features
Firmware
Firmware
document document Download

V2.5.62

History version Arrow Arrow

| 10/26/2026

Descriptions:
  1. Supports controlling the device via Stream Deck, such as starting live streaming and recording.
  2. Add video aspect ratio information to the H.264/HEVC sequence parameter set (SPS).
  3. Change the login, add-user, ch-password and set-password APIs to POST mode, and update the front-end pages to POST mode accordingly to avoid network security issues.
  4. Change the imported/exported configuration to an archive package, which can include the uploaded no-signal images, overlay images, certificates and other information.
  5. Change the exported report to an archive package, adding the export of device logs and device status information.
  6. Security updates: limit the number of API login attempts, fix the file upload vulnerability, fix the 404 page issue, close unnecessary ports (1201/2019/2020/2021), enhance the security of local password storage, and remove local login-free access to enhance network security, etc.
  7. Update NDI SDK to version 6.3.2.
  8. Update SRT SDK to version 1.5.6.
  9. Fix the issue where PCR packets were not sent separately when using streaming protocols with MPEG-TS encapsulation, custom PIDs and a PCR PID identical to the video or audio PID.
  10. Add the SDT service name configuration option for streaming protocols with MPEG-TS encapsulation.
Documents
Documents User Manual for Ultra Encode HDMI/SDI
English | 1.51 MB | 10/26/2026
Download
Documents Quick Start Guide for Ultra Encode
English | 146 KB | 11/06/2025
Download
What's Included
tag-icon

Ultra Encode HDMI x1

Part number: 53110

Power Adapter (US/EU/UK/AU/JP) x1

Part number: ACC08010

Power Adapter (KR) x1

Part number: ACC08015

USB 2.0 Type B cable x1

Part number: ACC00065

HDMI Cable x1

Part number: ACC00090

Wi-Fi Antenna x1

Part number: ACC09021

T-bracket x1

Part number: ACC02241

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
