Ultra Encode SDI
Ultra Encode SDI

A Flexible & Affordable Universal Encoder

SKU: 531200000

  • Live H.264/H.265 streaming
  • Supports streaming protocols including SRT, NDI®|HX, HLS & more
  • Suitable for various network environment

* The former SKU (530500000, 530500001) has been discontinued . For any further questions, please consult the Magewell sales team.

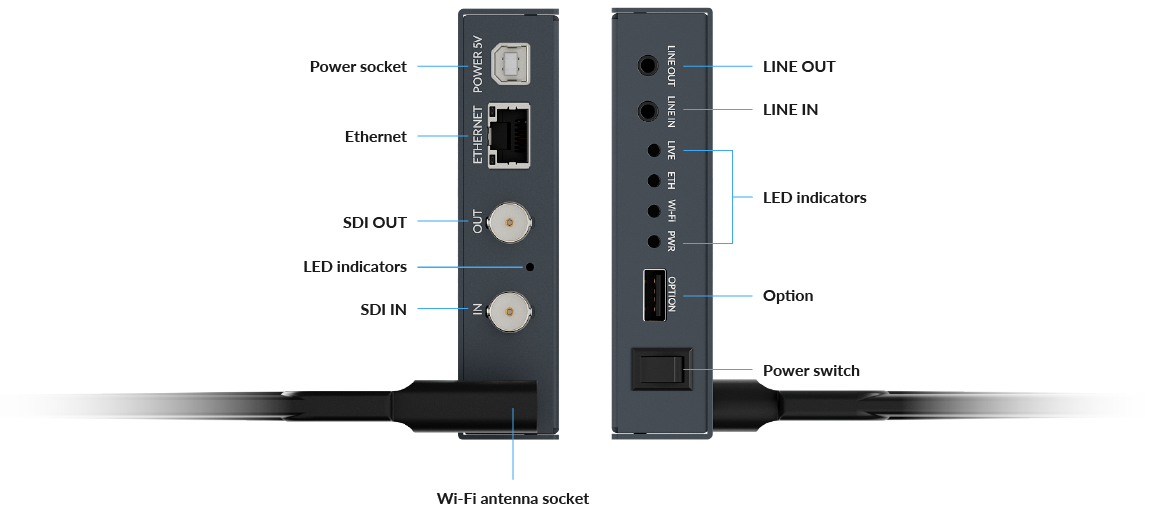

Interface

Specifications and Features

Input Features

  • Support for up to 2048x1080 60fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
  • Support for H.264/HEVC video encoding
  • Encoding 2-channel AAC at 48kHz, 16-bit

Streaming Features

  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/HLS/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)

Others

  • Internet connectivity via wired Ethernet and wireless network
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs
Full specifications and features
Firmware
Firmware
document document Download

V2.3.353

History version Arrow Arrow

46.2 MB | 2025.07.03

Descriptions:
  1. Supports custom PID settings for SRT Caller/Listener.
  2. Supports accessing the Web UI via the domain name "devicename.local", where space in the name is replaced by "-".
  3. Supports setting static IP address when configuring wireless networks.
  4. Add synchronization service status for NTP time.
  5. Update NDI® discovery server to support multiple IP addresses.
  6. Update NDI® SDK version to V6.1.1.
  7. When both input and encoding resolutions are 720x576, the video aspect ratio follows the input signal.
  8. Fix incorrect bottom field display when capturing interlaced signals without deinterlacing.
  9. Fix data transmission failure when setting main stream and preview stream as black screen streams in NDI® streams.
  10. Fix occasional download failures when downloading files via the web interface.
  11. Fix the issue where the UDP/RTP PMT PID setting could not be applied to Video/Audio PID settings.
  12. Remove the HLS stream bandwidth limit.
  13. Modify the minimum delay time of SRT Caller/Listener to 20 milliseconds.
  14. Fix decoding display of 904 when video encoding height is 900.
  15. Fix the issue that color space and quantization range in video output settings affect encoding output.
Documents
Documents User Manual for Ultra Encode HDMI/SDI
English | 5.17 MB | 2025/07/03
Download
Accessories

Included

Power Adapter (US/EU/UK/AU/JP)x1

Part number: ACC08010

Power Adapter (KR) x1

Part number: ACC08015

USB 2.0 Type B cable x1

Part number: ACC00065

Wi-Fi Antenna x1

Part number: ACC09021

T-bracket x1

Part number: ACC02241

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
