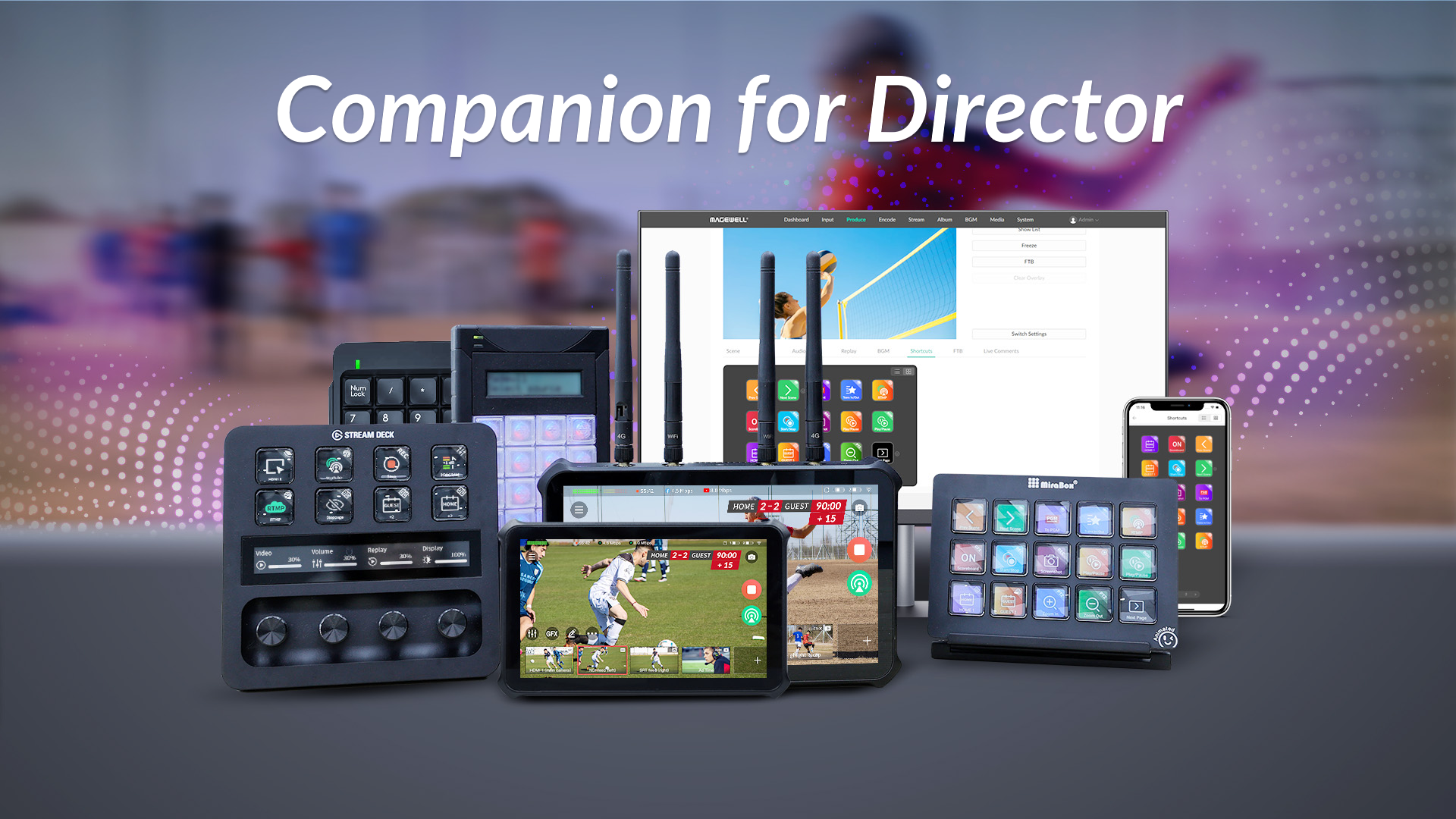

Tactile Control with
Stream Deck
Stream Deck
Control Director Mini with
Elgato Stream Deck controllers
Elgato Stream Deck controllers
New NDI® Alpha
Channel Support
Channel Support
Add NDI High Bandwidth sources with alpha channel as graphic overlays
Expanded Input
Flexibility
Flexibility
New support for HTML web page sources, RTSP streams and SRT Listener mode
Easier Multi-Camera
Content Creation
Content Creation
Built-in multi-source scene presets make show creation easier and faster
Expanded Production
Features
Features
More scoreboard templates, transition effects and graphics options are included
Incredible Input Source Flexibility
Users can switch between two HDMI inputs and two USB AV inputs as well as three simultaneous live IP sources including SRT streams, RTMP streams, RTSP streams, NDI® High Bandwidth and NDI® HX sources. HTML webpages and file-based media assets including video, audio and images can also be combined freely with live sources.
Flexible Layouts and Powerful Production Tools
Users can define multiple scenes that combine live video and audio inputs with network streams, media sources and graphics, then switch or transition between these scenes on the fly. Production tools including chroma keying, graphics and telestration further enhance your content.
Flexible Network Connectivity
Ethernet
Wi-Fi 5
External USB
Modem
Modem
Network Bonding
USB Tethering
Ethernet
Wi-Fi 5
External USB
Modem
Modem
Network Bonding
USB Tethering
Easier Multi-Camera Content Creation and Monitoring
Director Mini features multi-source scene layout presets, making it easier and faster for content creators to produce engaging multi-camera event streams. Users can also choose to monitor and stream a combination of program, preview and input sources with Multi-view output mode.
Extensive and Robust NDI Support
Director Mini is NDI® Certified, and support for NDI® High-Bandwidth and NDI® HX3 comes standard with Director Mini at no additional charge. Users can bring in up to three NDI sources simultaneously, one of which can be used as a motion graphics overlay with NDI alpha channel. Director Mini also can provide two simultaneous NDI HX3 outputs, chosen from the program output, input sources, or a multi-view of program, preview and sources.
Leverage Your Phone for More Control and More Camera Angles
The Director Utility App works as a remote assistant to provide remote configuration, audio mixing, input switching, scoreboard control, instant replay and more. The app can also turn the smartphone’s camera into a streaming source as a mobile input to the Director Mini hardware, further enhancing the multi-camera production possibilities of the system. Users can connect 3 phone cameras for 3 separate scenes in one event.
Winning Features for Superior Sports Streaming

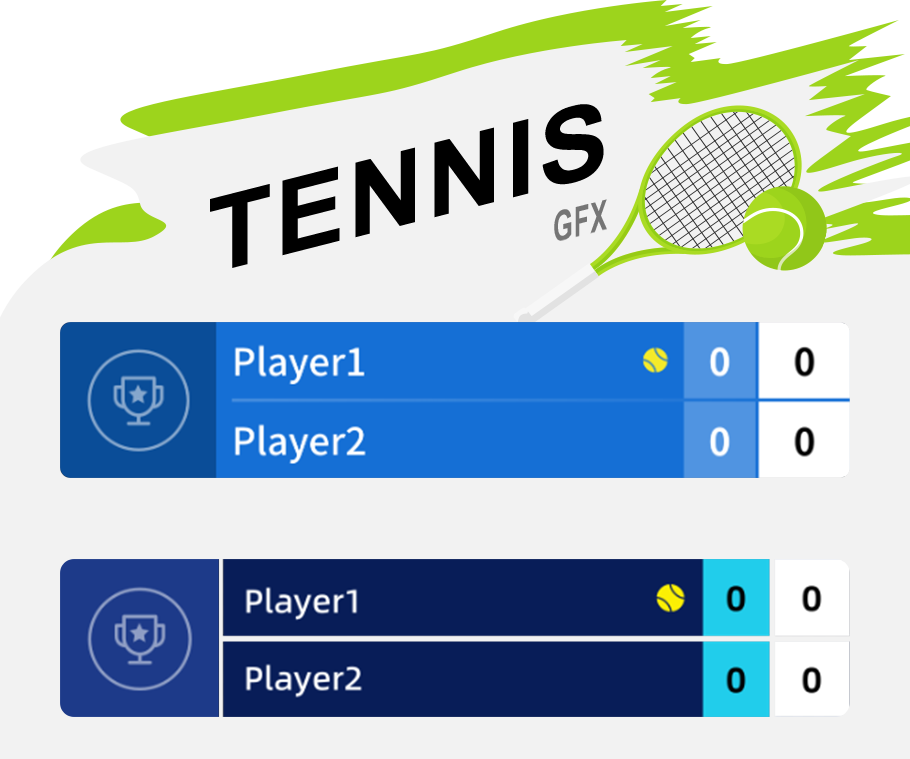

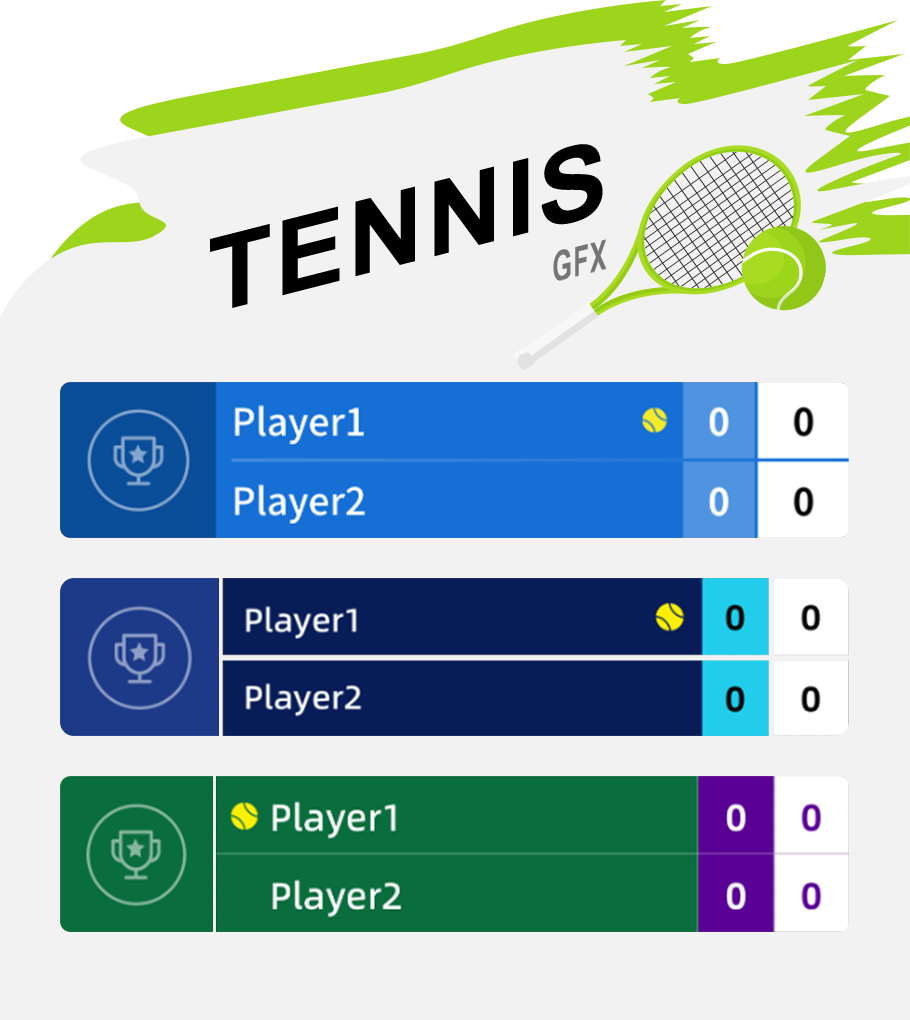

Integrated scoreboard graphics
Telestration

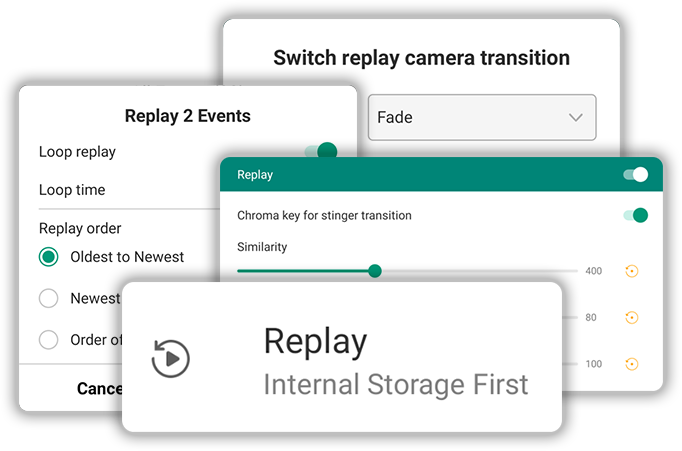

Instant replay
Live HTML graphics
Network bonding
High-quality Streaming and Recording
Director Mini can encode video up to 1080p at 60 frames per second and bitrates up to 30Mbps. Productions can be streamed via RTMP to popular platforms such as YouTube™ Live, Facebook™ Live, or custom destinations. SRT output supports high-quality remote production workflows, while NDI® HX3 output is ideal for local IP-based production. Content can also be recorded to an SD card or the device’s internal storage. Two-channel ISO recording lets users choose from the program output, HDMI inputs or USB inputs.
Stream Everywhere
ISO Recording
Record to Local Storage
or SD card
or SD card
Swipe left to see more
Stream Everywhere
ISO Recording
Record to Local Storage
or SD card
or SD card
Control Your Content Creation the Way You Want
Director Mini lets users easily produce engaging multi-camera content through an intuitive touchscreen interface and a flexible array of additional powerful control options.
Built-in 5.44" AMOLED touchscreen

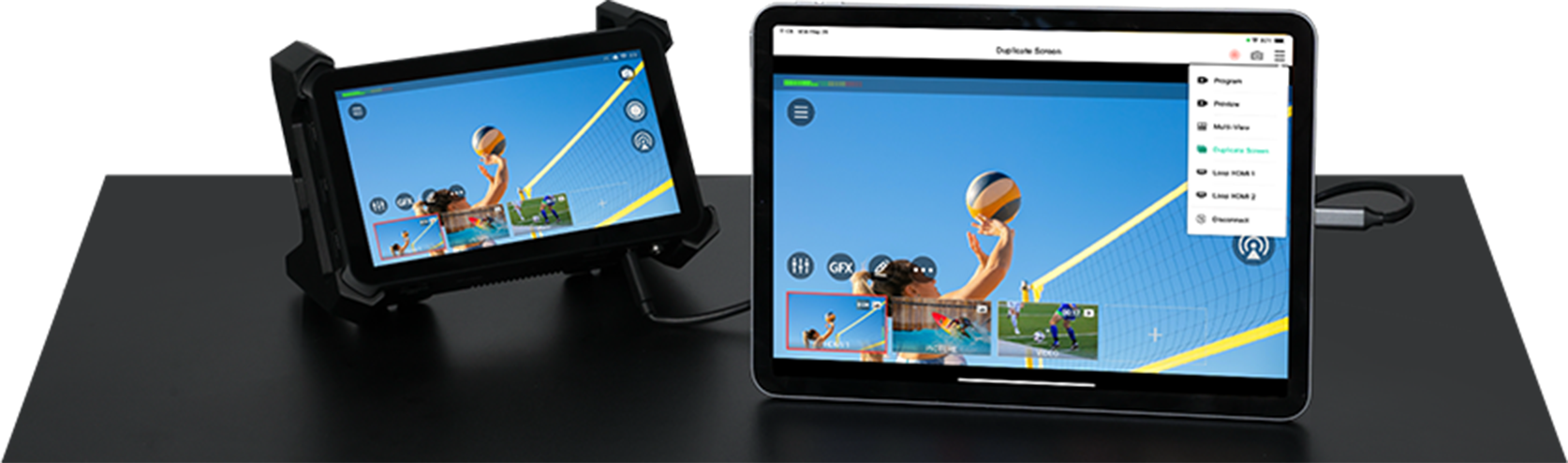

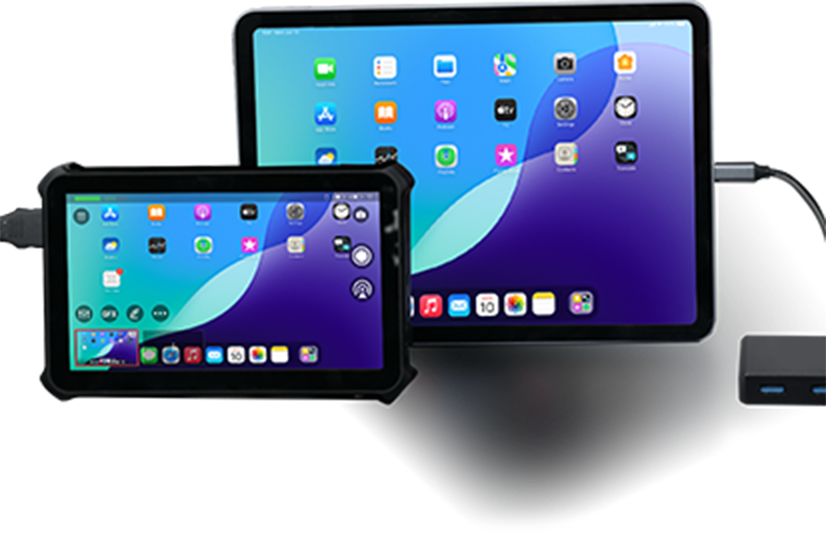

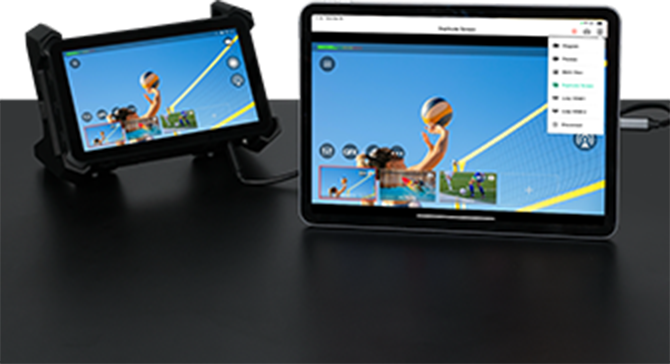

External touchscreen monitor with Touch Function port

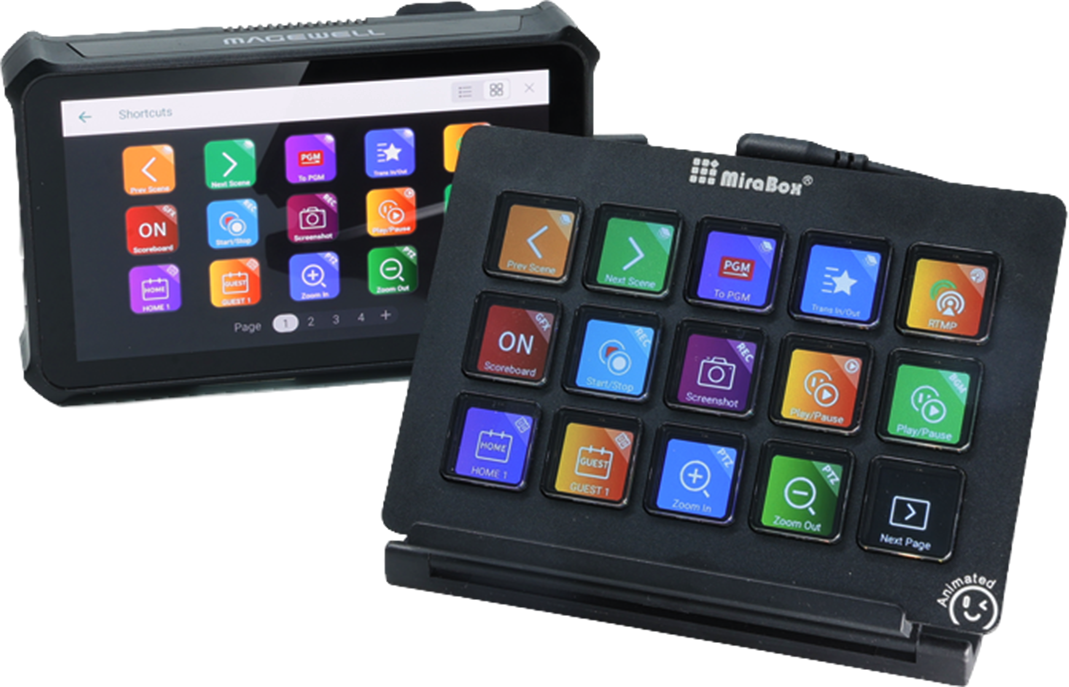

USB or Bluetooth devices such as X-Keys to trigger Shortcuts
Ideal for Production in the Studio or in the Field
Director Mini can be powered with the included power adapter but also supports two NP-F hot-swappable external batteries (not included), enabling it to be used anywhere and ensuring uninterrupted power for long productions. When one of the batteries runs down during the show, the device will automatically switch to the other one.
Product Info
Director Mini
A portable device that does multi-input switching, graphics, streaming, recording and monitoring
SKU: 551100000
- Supports flexible input sources ranging from AV and IP streams to media files
- Intuitive user interface and companion app for scene editing and creating shows
- Rich output possibilities including RTMP and SRT streams, NDI® HX3 and local displays

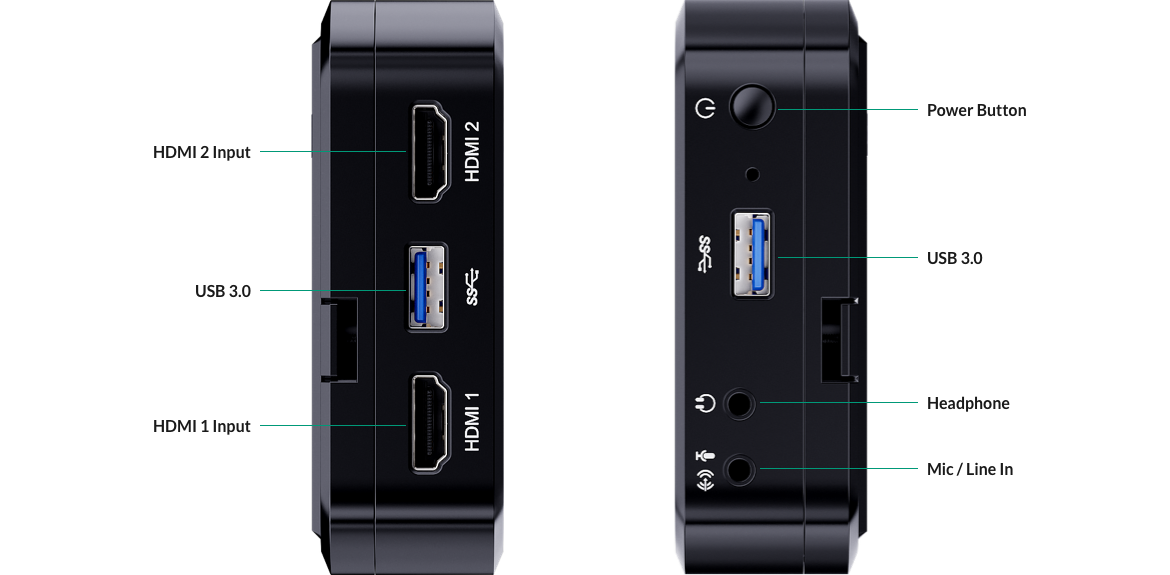

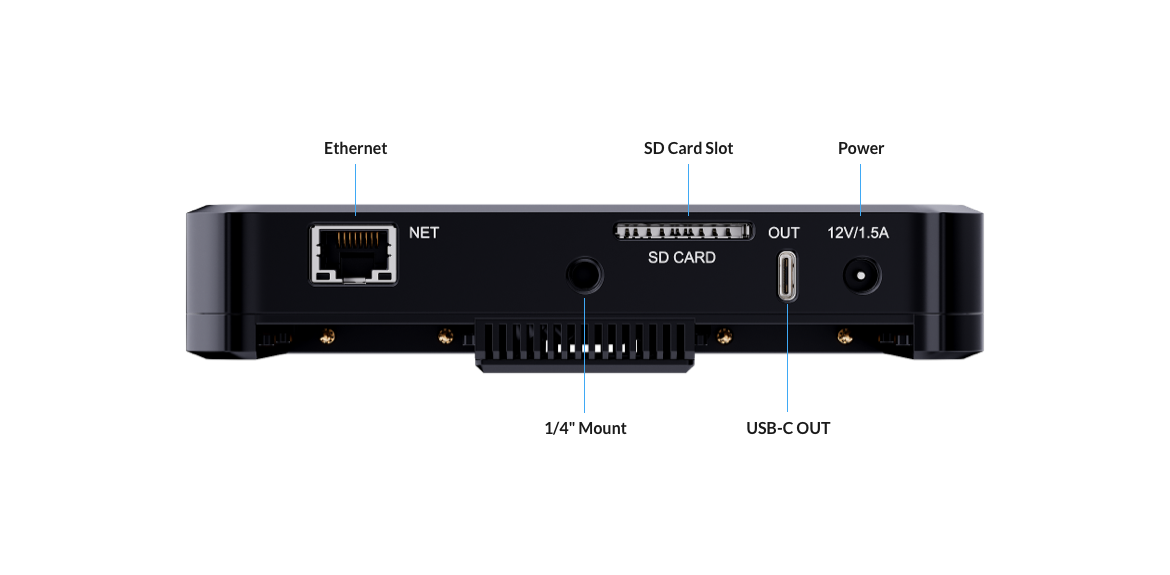

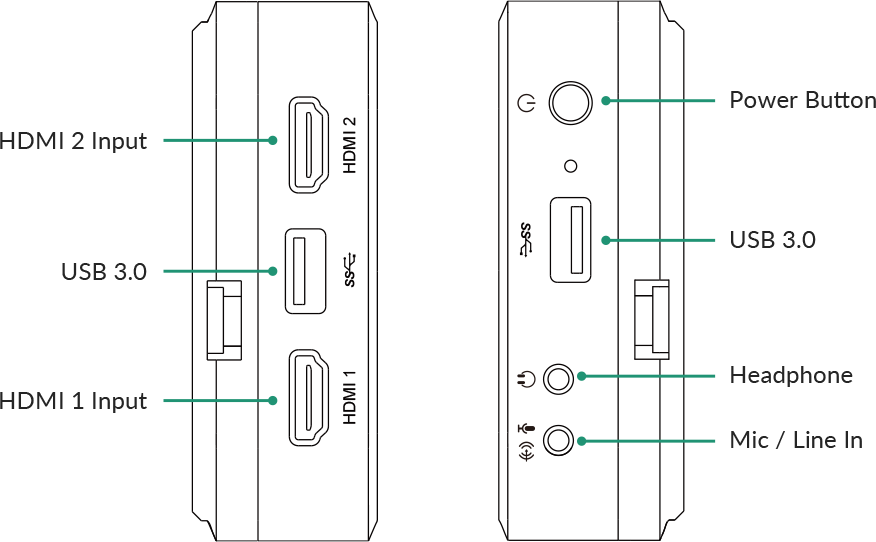

Interface
Specification and Features
Inputs
- Two HDMI inputs
- Two USB AV inputs
- Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI® HX2, NDI® HX3)
- Mobile camera (via Director Utility App)
- Media files (video, image, music, etc.)
- Webpage Inputs
Features
- Shows can be created in landscape (16:9) or portrait (9:16) mode
- A show can consist of multiple scenes
- Powerful production tools including chroma keying, graphics, telestration and more

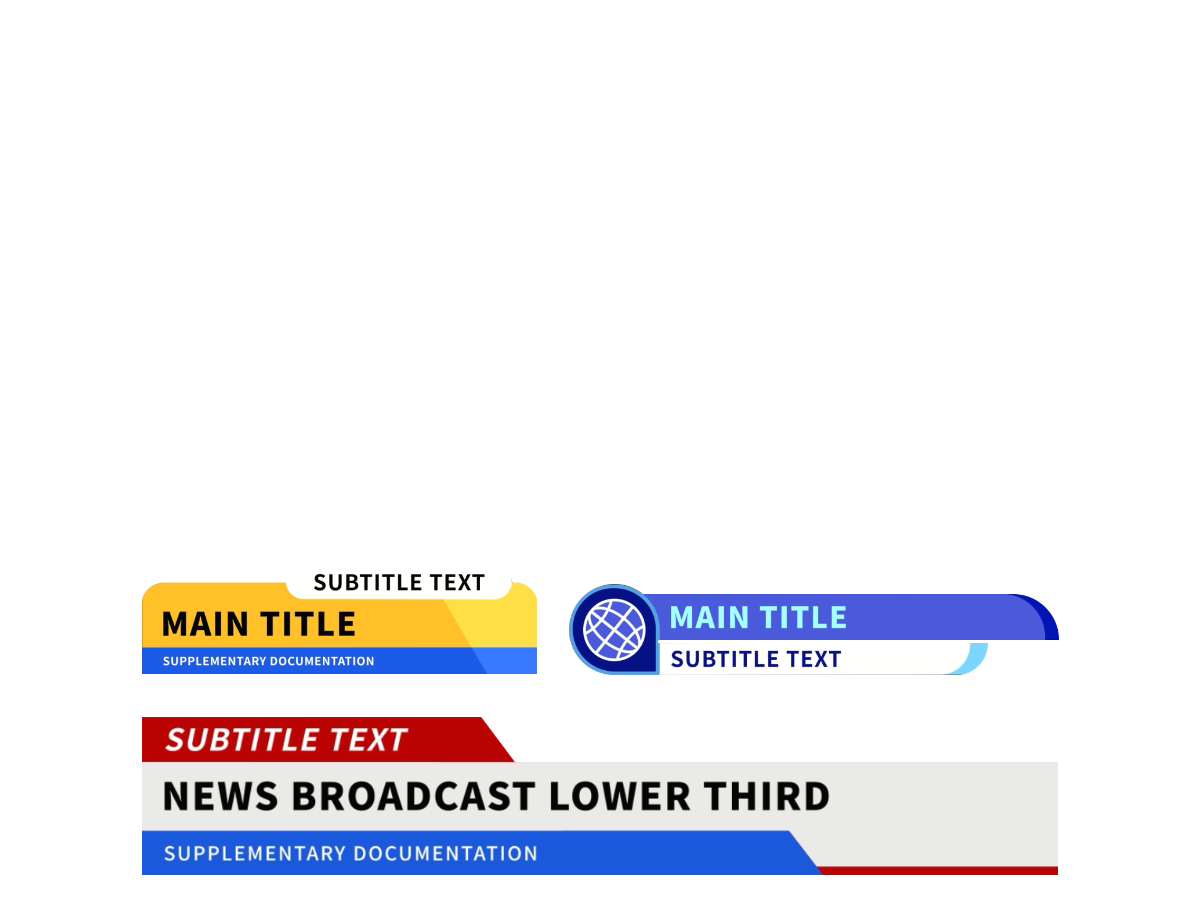

- Display multiple graphics including titles, lower thirds, a scoreboard, timer, stopwatch and more
Streaming
- Natively supports streaming to YouTube, Twitch and Facebook Live
- Stream via SRT, RTMP and NDI® HX3
- Supports customizing encoding parameters and selecting the encoding source for ISO streaming
- Supports streaming to two destinations simultaneously
Recording and screenshot
- Split recording files by time or size
- Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source
Included Software
Network
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and Hotspot modes are both supported
Others
- 5.44" AMOLED capacitive touchscreen
- Warranty: 2 years for the whole device, 1 year for the screen
- Form factor: 147.2mm (L) x 90mm (W) x 28.5mm (H) or 5.79in (L) x 3.54in (W) x 1.12in (H)
- HTTP-based APIs for custom integration
- Director Mini OSC sample layout provided
Firmware
Download
Descriptions:
- Add RTSP and webpage inputs for setting default options in Settings > Audio.
- Shortcuts support switching shows and deleting events.
- Optimize Speedify bonding mode.
- API and OSC support switching shows and delete events.
- Fix known issues.
Director Mini User Manual
Accessories
Included
Power Adapter x1
Part number: ACC08018
Mini Stands x2
Part number: ACC10015
Sun Hood x1
Part number: STR00085
Thumb Screws x2
Part number: MEC00038
We recommend you always use the included accessories to avoid unnecessary damage to your device.
Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
