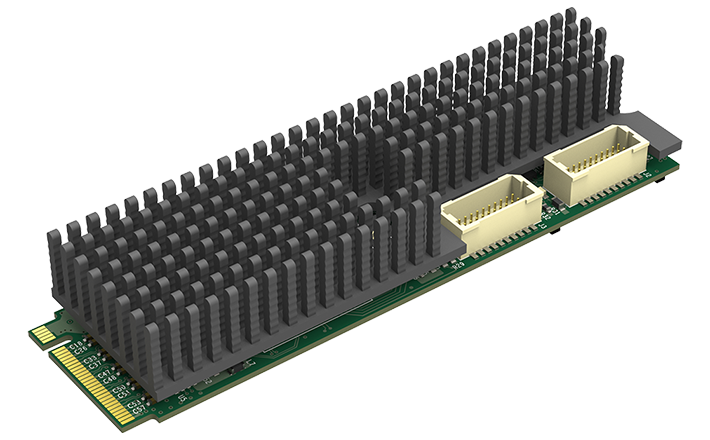

Eco Capture Dual HDMI M.2
Eco Capture Dual HDMI M.2

Two-channel 2K capture card

Part number: 11514; 11510

SKU:
  • HDMI x 2 + embedded audio x 2

Two options are provided to support different input connectivity. Check the SKU for pictures.

Interface

Specifications and Features

Interface

Input Interface

  • HDMI x2
  • Support input resolution up to 2048×2160 pixels

Host Interface

  • M.2 (PCIe Gen2 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number
Full specifications and features
Driver
driver
document document Download

V1.3.0.4366

History version Arrow Arrow

4.34 MB | 2023.12.05 | Windows 10/11 series

Descriptions:
  • Add support for Eco Capture HDMI 4K Plus M.2.
  • Add support for Eco Capture 12G SDI 4K Plus M.2.
driver
document document Download

V1.3.0.4210

History version Arrow Arrow

4.17 MB | 2020.11.24 | Windows 7/8/8.1 series & Server System

Descriptions:
  1. Add support for Eco Capture QL-SDI 4K M.2.
  2. Add support for Eco Capture SDI 4K Plus M.2.
driver
document document Download

V1.4.227

History version Arrow Arrow

2.38 MB | 2023.12.08

Descriptions:
  1. Add support for Eco Capture HDMI 4K Plus M.2 cards.
  2. Add support for Eco Capture 12G SDI 4K Pus M2 cards.
  3. Fix problem: exceptionally access released memory.
driver
document document Download

V1.4.47

History version Arrow Arrow

2.12 MB | 2020.08.19 | Linux, ARM TX1

Descriptions:
  1. Fix problem: driver installation may fail on an operating system with kernel version 5.7.
driver
document document Download

V1.4.227

History version Arrow Arrow

2.22 MB | 2023.12.08

Descriptions:
  1. Add support for Eco Capture HDMI 4K Plus M.2 cards.
  2. Add support for Eco Capture 12G SDI 4K Pus M2 cards.
  3. Fix problem: exceptionally access released memory.
Firmware
Firmware
History version Arrow Arrow

7.26 MB | 2024.01.18

Descriptions:

Applicable products: Eco Capture Dual HDMI M.2, Eco Capture Quad SDI M.2, Eco Capture HDMI 4K M.2, Eco Capture SDI 4K Plus M.2

  1. Enhance the stability of SDI-interface capture cards operating in high-temperature environments.
  2. Fix compatibility issues with some Gigabyte motherboards.



* To use the firmware in Linux environment, follow the instruction below:

  • Method 1: In Windows environment, use the Windows upgrade tool in the zip package to upgrade the firmware, and then use the card in Linux environment after upgrade.
  • Method 2: Download the Linux upgrade tool, put the *.swf file in the Windows upgrade toolkit into the Linux update tool directory, and upgrade the firmware in Linux environment.
Firmware
History version Arrow Arrow

2.39 MB | 2019.04.12 | Linux

Descriptions:

Initial release.

* for Eco Capture HDMI 4K M.2, Eco Capture Dual HDMI M.2 capture devices.

Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Download
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Download
Accessories

Included

2 x SHD to HDMI type A breakout

Part number: ACC00070

2 x FPC to HDMI type A adapters

Part number: 90092

2 x FPC ribbon cables (20 cm)

Part number: ACC00093

Optional

Mini Repeater 4K HDMI

Learn more

* Please contact our sales or distributor if you need the FPC ribbon cable of other length.
