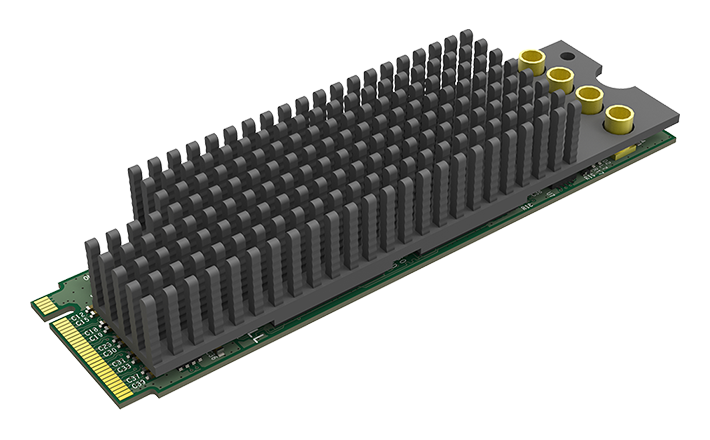

Eco Capture QL-SDI 4K M.2
Eco Capture QL-SDI 4K M.2

Single channel 4K capture card

SKU: 115500000

  • Capture 1-channel 4K video via quad-link 3G-SDI + embedded audio
* MOQ is required.

* This product has been discontinued. For any further questions, please consult the Magewell sales team.

Interface

Specifications and Features

Interface

Interface

Input Interface

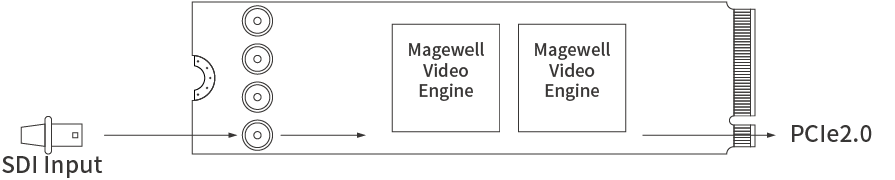

  • 1-channel SD/HD/3G SDI

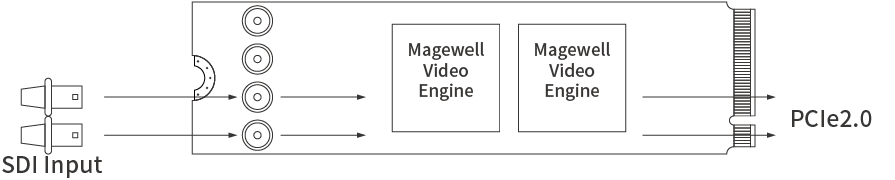

  • 1 dual-link HD/3G, supporting 2SI mode only

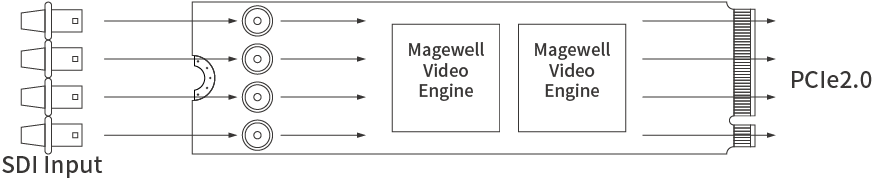

  • 1 quad-link 3G, supporting 2SI mode only

Host Interface

  • M.2 2280 Type M (PCIe Gen2 x4)
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

Closed Caption

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express
  • Magewell Bridge for NDI®

Compatible Software

Others

Low Power Consumption

Multiple Replicated Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

Windows & Linux SDK

2-year Warranty

Dip Switch

LED Status Indicator

Driver

driver
document document Download

V1.3.0.4323

History version Arrow Arrow

4.29 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4210

History version Arrow Arrow

4.17 MB | 2020.11.24 | Windows 7/8/8.1 series & Server System

Descriptions:
  1. Add support for Eco Capture QL-SDI 4K M.2.
  2. Add support for Eco Capture SDI 4K Plus M.2.
driver
document document Download

V1.4.187

History version Arrow Arrow

2.40 MB | 2023.03.16

Descriptions:
  1. Add support for Eco Capture AIO M.2 cards.
  2. Fix problem: Driver installation on a Linux 6.1 or 6.2 kernel system may fail.
Firmware
Firmware
History version Arrow Arrow

5.07 MB | 2017.12.14 | Windows 7 and later

Descriptions:

* If the user need to obtain the ANC data in SDI signal, please use firmware v1.6. If not, please use v1.5.

  1. Initial release.
  2. Add support to ANC data in SDI signals.
Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Accessories

Included


4 x MMCX to SDI breakout

Part number: ACC00052
