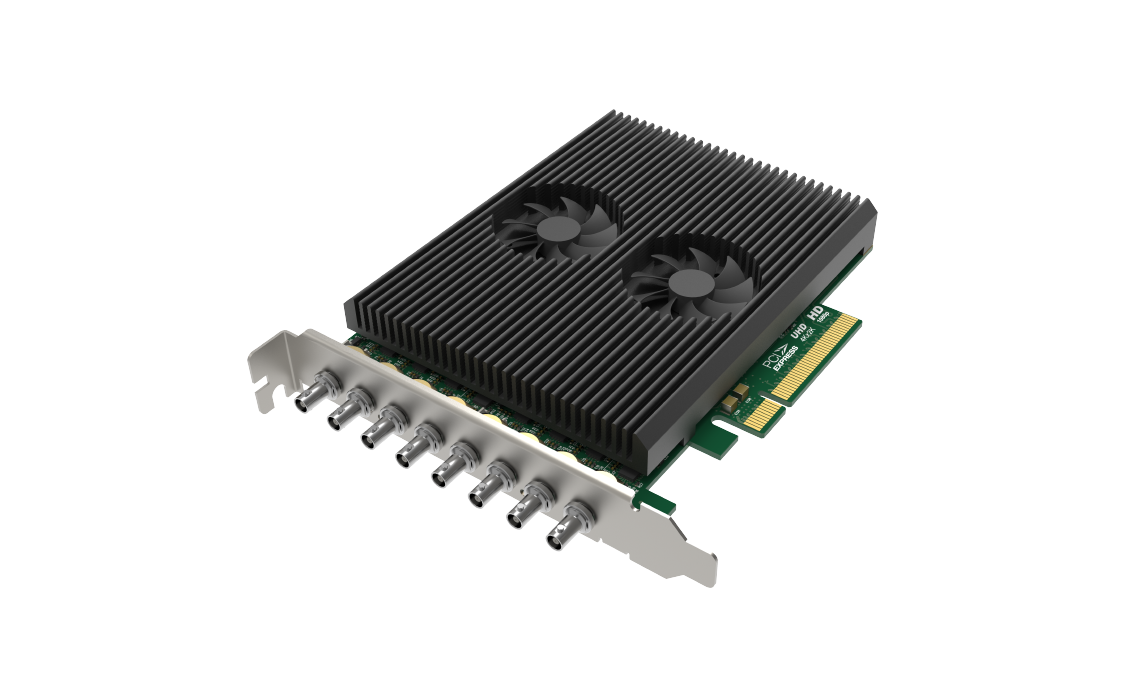

Pro Capture Dual SDI 4K Plus
Pro Capture Dual SDI 4K Plus

Two-Channel 4K Capture Card

Part number: 11270

SKU: 112700000

Capture two 12G-SDI signals in one of the following connecting methods:

  • Single-link 12G-SDI
  • Dual-link 6G-SDI
  • Quad-link 3G-SDI

Interface

Specifications and Features

Interface

Interface

Input Interface

  • SD/HD/3G/2K/6G/12G SDI x2
  • SD/HD/3G/2K/6G SDI x2
  • SD/HD/3G/2K/SDI x4
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • PCIe Gen2 x8
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

Time Code

Closed Caption

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows, Linux and Mac SDK

2-year Warranty

Full specifications and features
Driver
driver
document document Download

V1.3.0.4323

History version Arrow Arrow

1.89 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4076

History version Arrow Arrow

1.73 MB | 2019.07.01 | Windows 7/8/8.1 series & Server System

Descriptions:

Support of Pro Capture Dual SDI 4K Plus.

Firmware
Firmware
History version Arrow Arrow

42.9 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Added firmware for the Pro Capture Dual SDI 4K Plus card.
  2. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  3. This firmware applies only to Pro Capture AIO 4K Plus C/D revisions, Pro Capture AIO 4K A revision, Pro Capture AIO B/C revisions, Pro Capture Dual SDI 4K Plus A revision, Pro Capture Dual SDI A/B/C revisions, Pro Capture DVI A revision, Pro Capture HDMI 4K Plus A/D revisions, Pro Capture HDMI 4K A revision, Pro Capture HDMI A revision, Pro Capture Hexa CVBS A revision, Pro Capture Mini HDMI C revision, Pro Capture Mini SDI B revision, Pro Capture Quad HDMI B revision, Pro Capture Quad SDI B/C revisions and Pro Capture SDI A/B revisions.
Firmware
History version Arrow Arrow

6.35 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  2. This firmware applies only to Pro Capture Dual SDI A/B/C revisions, and Pro Capture Mini SDI B revision.
Accessories

Included

HD-BNC to BNC Cable x8

Part number: ACC00053
