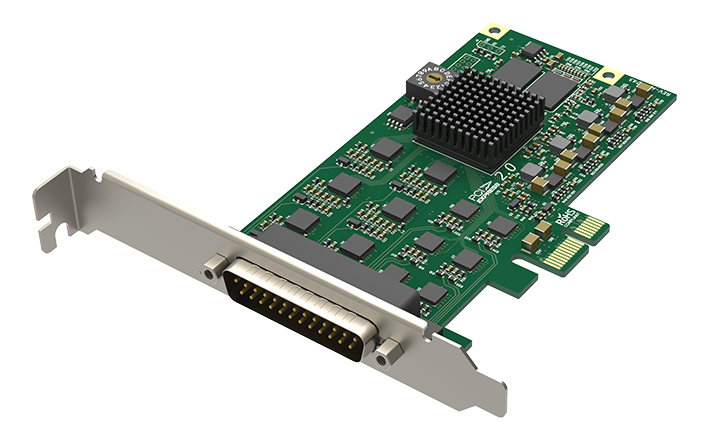

Pro Capture Hexa CVBS
Pro Capture Hexa CVBS

Six-channel SD capture card

Part number: 11250

SKU: 112500000

  • CVBS (Video + audio) x 6

Interface

Specifications and Features

Interface

Interface

Input Interface

  • DB25 x1
  • Support input resolution up to 720×576 pixels

Host Interface

  • PCIe Gen2 x1
VideoEngine

Video Engine

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection&Support

Auto Detection of Input Signal Format

Time Code

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows&Linux SDK

2-year Warranty

Full specifications and features
Driver
driver
document document Download

V1.3.0.4323

History version Arrow Arrow

1.89 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4076

History version Arrow Arrow

1.73 MB | 2019.07.01 | Windows 7/8/8.1 series & Server System

Descriptions:

Support of Pro Capture Dual SDI 4K Plus.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

2.15 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
driver
document document Download

V1.3.0.4177

History version Arrow Arrow

2.00 MB | 2020.04.13

Descriptions:
  1. Fix problem: In v4l2, enum_framesizes cannot get the correct information in the DISCRETE model.
  2. Fix problem: Signals cannot be locked when using ProCapture DVI 4K card to capture signals.
  3. Fix problem: Driver installation on a 5.4 or 5.6 kernel system may fail.
driver
document document Download

V1.3.0.4186

History version Arrow Arrow

1.99 MB | 2020.08.19

Descriptions:

Fix problem: driver installation may fail on an operating system with kernel version 5.7.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

1.96 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
Firmware
Firmware
History version Arrow Arrow

42.9 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Added firmware for the Pro Capture Dual SDI 4K Plus card.
  2. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  3. This firmware applies only to Pro Capture AIO 4K Plus C/D revisions, Pro Capture AIO 4K A revision, Pro Capture AIO B/C revisions, Pro Capture Dual SDI 4K Plus A revision, Pro Capture Dual SDI A/B/C revisions, Pro Capture DVI A revision, Pro Capture HDMI 4K Plus A/D revisions, Pro Capture HDMI 4K A revision, Pro Capture HDMI A revision, Pro Capture Hexa CVBS A revision, Pro Capture Mini HDMI C revision, Pro Capture Mini SDI B revision, Pro Capture Quad HDMI B revision, Pro Capture Quad SDI B/C revisions and Pro Capture SDI A/B revisions.
Firmware
History version Arrow Arrow

6.35 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  2. This firmware applies only to Pro Capture Dual SDI A/B/C revisions, and Pro Capture Mini SDI B revision.
Documents
Documents User Manual for Pro Capture Family
English | 704 KB | 2023/08/23
Download
Documents Short FAQs about Pro Capture
English | 60.5 KB | 2021/01/19
Download
Accessories

Included

DB25 to 6 A/V cable x1

Part number: ACC00040

Low Profile Bracket

Part number: ACC01051
