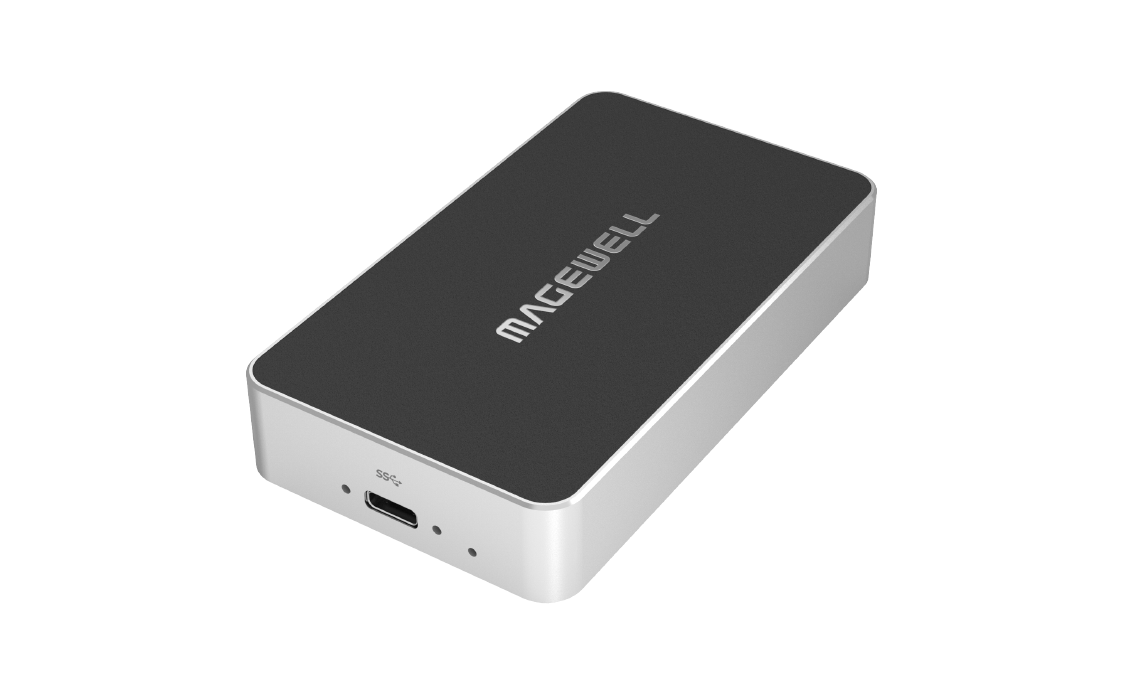

Pro Convert IP to USB Specifications

document Download

Output Features

  • Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    • 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
  • Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    • 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
  • UAC: 2-channel, 16-bit, 48KHz

Decoding Features

  • Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
  • Decoding H.264 / H.265
  • Supports NDI 6

Configuration Management

  • Register with Control Hub
  • Remote control via WebUI and Control Hub

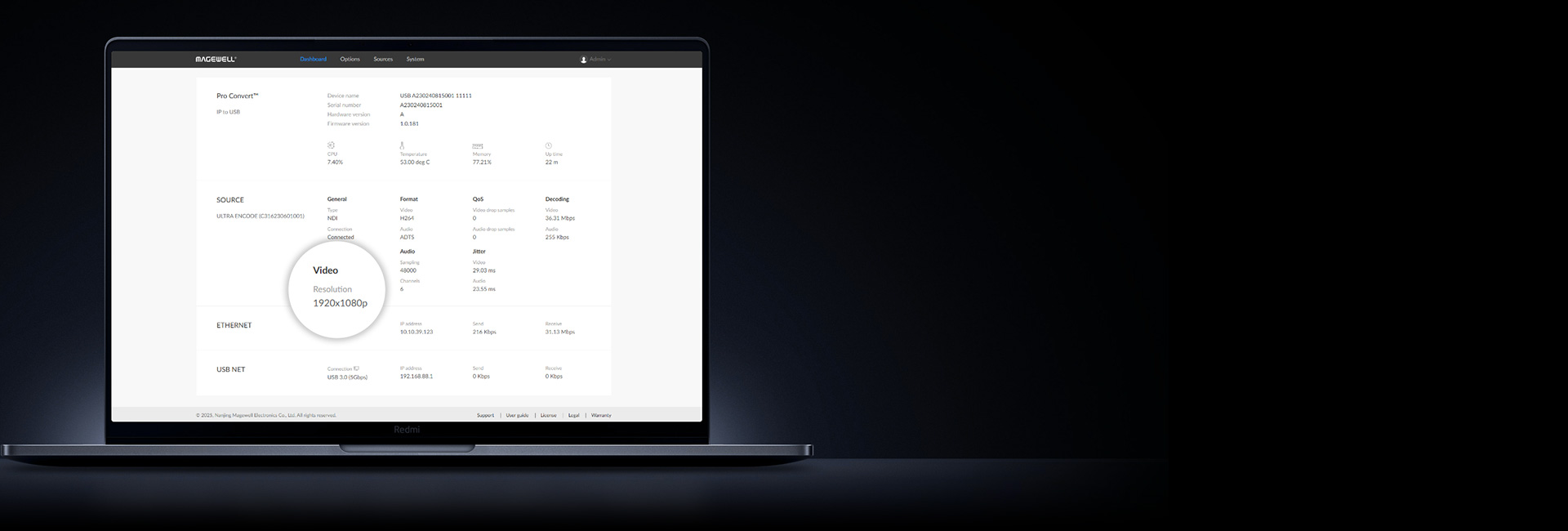

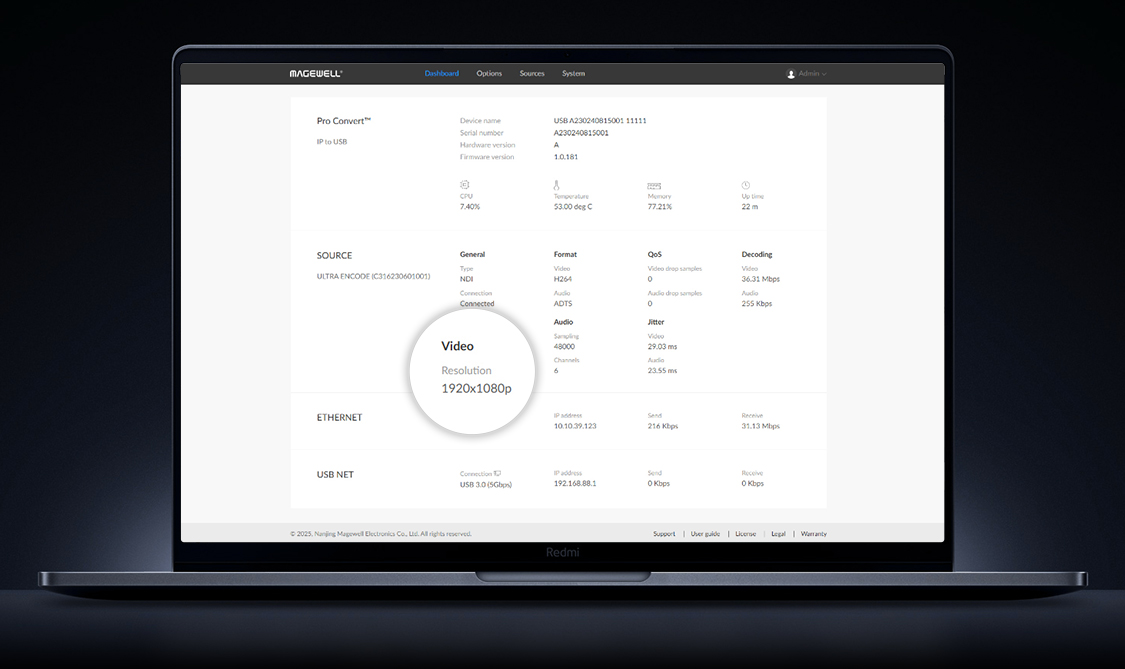

  • Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
  • Provide HTTP APIs
  • Support USB NET

PTZ Control

  • Control PTZ cameras using protocols of NDI and Visca over UDP

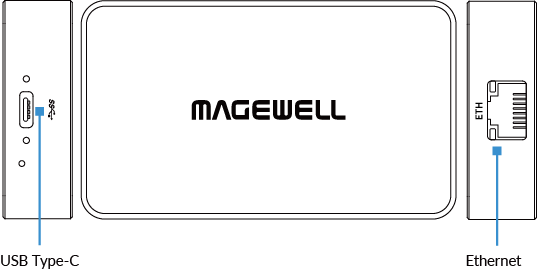

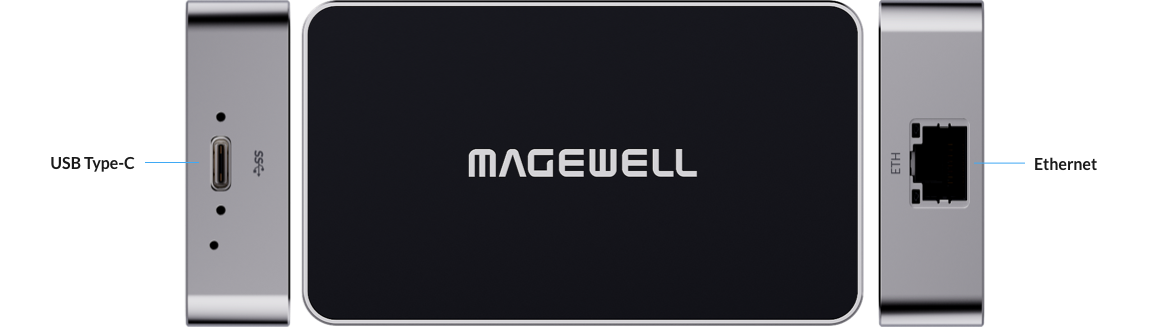

Host Interface

  • USB 3.0 (5 Gbps) Type-C
    • 5V/1A power supply
    • USB NCM

Network Connections

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

Recommended OS

  • Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9 and above
  • macOS 10.12 and above

Supported Products

  • Zoom Rooms
  • Microsoft Teams
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • vMix
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

LED Indicators

  • Status LED indicates:
    • Power supply: on/off

Form Factor

  • 3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)

Power Consumption

  • 5V max current: ~ 1A
  • Max power consumption: ~ 3.8W

Working Environment

  • Operating temperature: 0 to 50 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
