Ultra Stream HDMI
Ultra Stream HDMI

A dedicated HDMI streaming encoder with loop-through

Part number:
53010 US; 53012 EU; 53013 UK;
53014 AU; 53015 KR; 53016 JP

The device is supplied with different options of power adapters.

SKU:
530100000 (for US/EU/UK/AU/JP users);
530100006 KR

  • Live streaming to popular services such as Facebook Live, YouTube or Twitch
  • Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
  • Records video to the internal storage, a connected USB drive or an associated smartphone
  • Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support

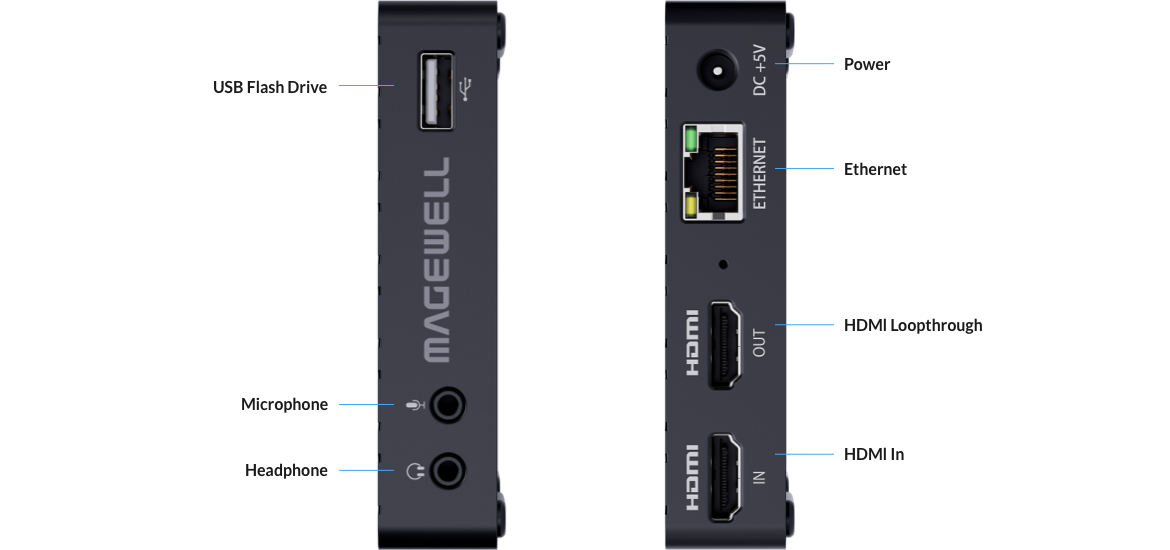

Interface

Specifications and Features

HDMI Specific Features

  • Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop-through signals

Audio Input/Output

  • Add narration through the analog microphone input
  • Monitor the input signal through the analog headphone output

Encoding Features

  • H.264 or HEVC (video) and AAC High Quality (audio) encoding; Video bitrates up to 8Mbps

Streaming Features

  • Stream to servers or platforms based on RTMP or RTMPS protocol
  • Stream to 2 servers simultaneously
  • Support for RTSP protocol

Recording Features

  • Record to internal storage (32GB), USB flash drive or the associated smartphone
  • Record as MP4 or MOV files

Others

  • Internet connectivity via wired Ethernet, Wi-Fi or optional 3G/4G modem support
  • Control via on-device buttons, intuitive smartphone app or browser-based interface
  • HTTP-based APIs for custom integration
Firmware
Firmware
document document Download

V1.5.170

History version Arrow Arrow

27.4 MB | 2021.09.27

Descriptions:
  • The recorded video clips can be uploaded to a specified FTP server.
  • Support viewing the EDID of HDMI input and setting that for HDMI output.
  • Set a static IP address when Ultra Stream is connected to a Wi-Fi network.
  • Configure what will be displayed when there is no input signal.
Documents
Documents Ultra Stream User Manual (for App)
English | 6.50 MB | 2021/09/27
Documents Ultra Stream User Manual (for Web GUI)
English | 5.44 MB | 2021/09/27
Documents Short FAQs about Ultra Stream
English | 55.5 KB | 2021/01/20
Accessory

Included


Power Adapter (US/EU/UK/AU/JP)x1

Part number: 98017

Power Adapter (KR) x1

Part number: 98015

Power Cable x1

Part number: 90064

HDMI Cable x1

Part number: 90090

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
