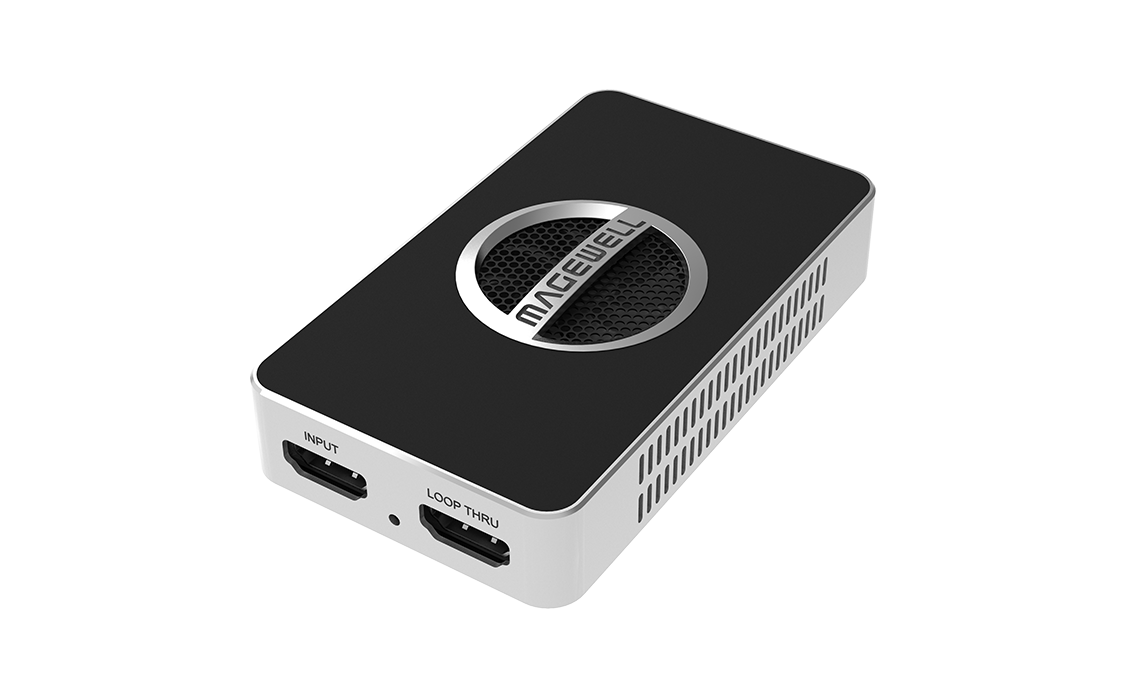

USB Capture HDMI 4K Pro

One-channel 4Kp60 capture device

SKU: 321500000

Capture HDMI + embedded audio
Loop-through HDMI signal
Audio input via mic
Extract HDMI embedded audio output via headphones

Specifications and Features

Interface

Input Interface & Loop-through Interface

One HDMI input + embedded audio
One HDMI loop-through
Support input & loop-through resolution up to 4096x2160 60fps 4:4:4

Audio Input/Output Interface

3.5mm audio jack for microphone/ headphones

Host Interface

USB 3.2 Gen 2x2 up to 20G throughput

OS

Windows, Linux, Mac, Chrome

Capture Format

Support capture resolutions up to 4096x2160
Support capture frame rates up to 240fps
Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface

Included Software

USB Capture Utility, Capture Express, etc.

Others

Auto detection of input signal format
Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
Windows, Linux and Mac SDK
Continuously work for 24hx7
LED status indicator
3-year warranty
Form factor: 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)

Full specifications and features

Firmware

Download

2607

History version

10.3 MB | 07/24/2026

Descriptions:

Apply to: USB Capture HDMI Gen2 Rev D, USB Capture SDI Gen2 Rev B, USB Capture AIO Rev B, USB Capture HDMI Plus Rev C, USB Capture SDI Plus Rev B, USB Capture DVI Plus Rev B, USB Capture HDMI 4K Plus Rev C, USB Capture SDI 4K Plus Rev C

Fixed the issue where Instance ID changes could cause capture software to require reconfiguration of the capture device after PC restart.
Adapted for Zoom Rooms.

Apply to: USB Capture HDMI 4K Pro, USB Capture SDI 4K Pro
