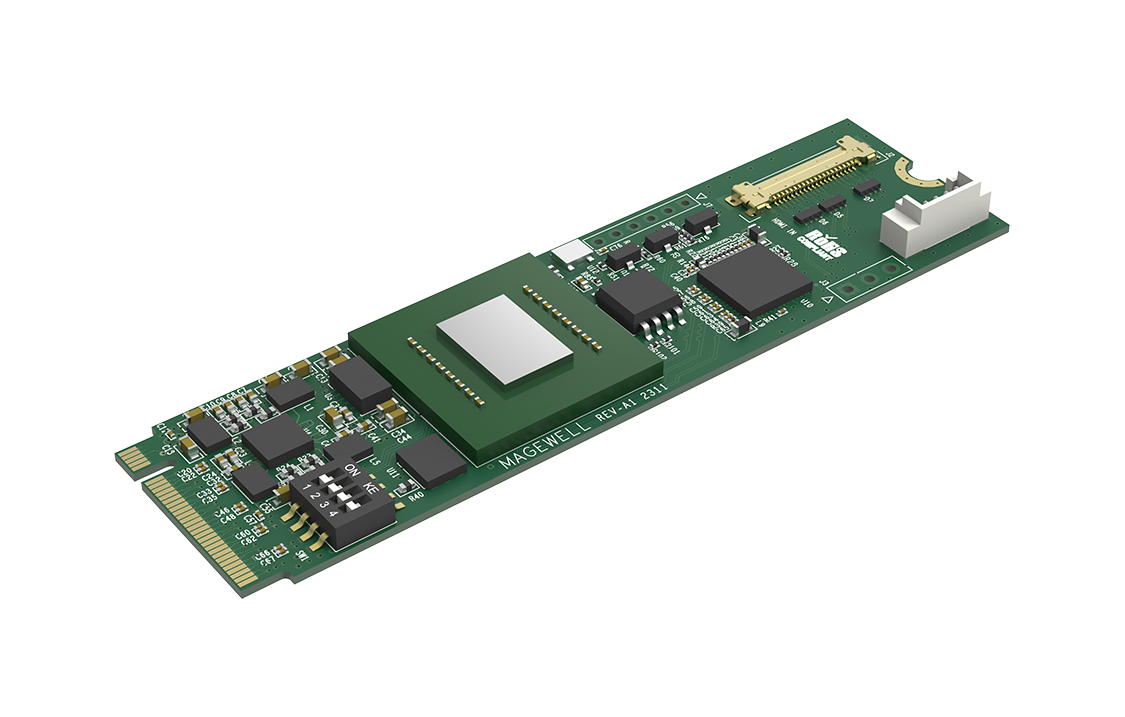

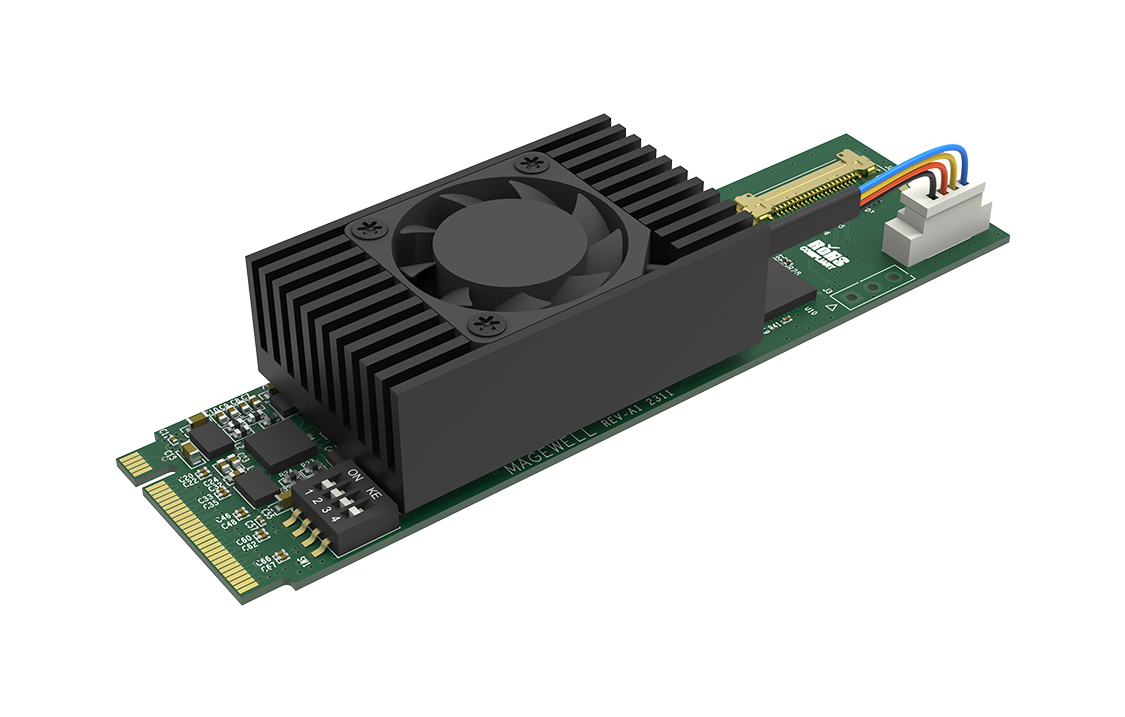

Eco Capture HDMI 4K Plus M.2
Eco Capture HDMI 4K Plus M.2

Single channel 4Kp60 capture card

SKU:
  • Captures one-channel HDMI + embedded audio
  • High throughout for capture and supports higher frame rates
  • M.2 2280 standard size for small or portable systems

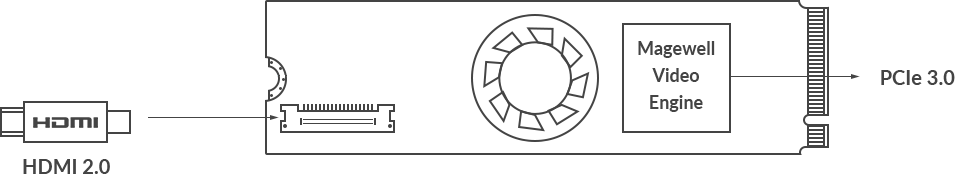

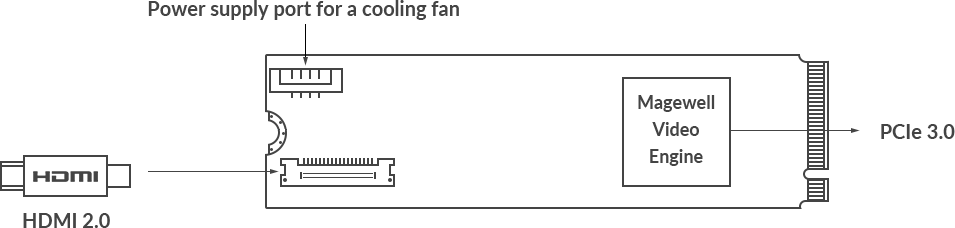

Interface

Specifications and Features

Interface

Input Interface

  • HDMI x1
  • Supports input resolution up to 4096x2160 60fps

Host Interface

  • M.2 2280 Type M (PCIe Gen3 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number
Full specifications and features
Driver
driver
document document Download

V1.3.0.4366

History version Arrow Arrow

4.34 MB | 2023.12.05 | Windows 10/11 series

Descriptions:
  • Add support for Eco Capture HDMI 4K Plus M.2.
  • Add support for Eco Capture 12G SDI 4K Plus M.2.
driver
document document Download

V1.4.227

History version Arrow Arrow

2.38 MB | 2023.12.08

Descriptions:
  1. Add support for Eco Capture HDMI 4K Plus M.2 cards.
  2. Add support for Eco Capture 12G SDI 4K Pus M2 cards.
  3. Fix problem: exceptionally access released memory.
driver
document document Download

V1.4.227

History version Arrow Arrow

2.22 MB | 2023.12.08

Descriptions:
  1. Add support for Eco Capture HDMI 4K Plus M.2 cards.
  2. Add support for Eco Capture 12G SDI 4K Pus M2 cards.
  3. Fix problem: exceptionally access released memory.
Firmware
Firmware
History version Arrow Arrow

7.94 MB | 2024.01.18

Descriptions:

Applicable products: Eco Capture Dual SDI M.2, Eco Capture HDMI 4K Plus M.2, Eco Capture 12G SDI 4K Plus M.2

  1. Add support for Eco Capture HDMI 4K Plus and Eco Capture 12G SDI 4K Plus M.2.
  2. Fix the issue of unable locking the video signal from some signal sources.



* To use the firmware in Linux environment, follow the instruction below:

  • Method 1: In Windows environment, use the Windows upgrade tool in the zip package to upgrade the firmware, and then use the card in Linux environment after upgrade.
  • Method 2: Download the Linux upgrade tool, put the *.swf file in the Windows upgrade toolkit into the Linux update tool directory, and upgrade the firmware in Linux environment.
Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Download
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Download
Accessories

Included

1 x LVDS 0.5PH 20-Pin cable

Part number: ACC00160

1 x LVDS 0.5PH 20-Pin to HDMI adapter

Part number: 99192

Optional

Mini Repeater 4K HDMI

Learn more

* Click here to check how to connect Eco Capture HDMI 4K Plus M.2 with HDMI adapter.
