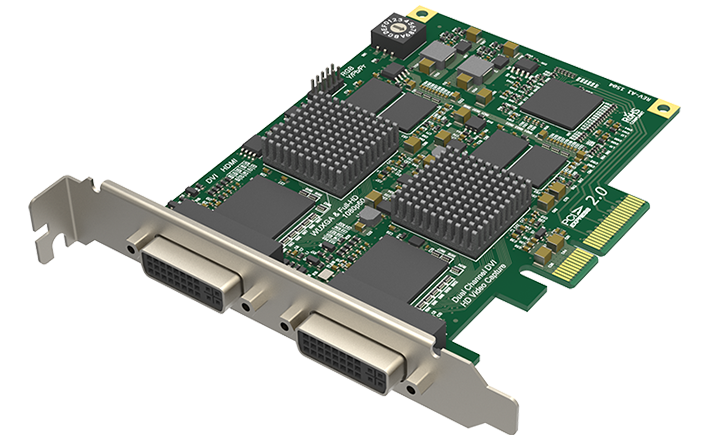

Pro Capture Dual DVI
Pro Capture Dual DVI

Two-channel HD capture card

Part number: 11070

SKU: 110700000

Captures one of the followings

  • DVI
  • VGA
  • Component
  • HDMI + embedded audio

Interface

Specifications and Features

Interface

Interface

Input Interface

  • DVI x2

Host Interface

  • PCIe Gen2 x4
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

3D HDMI

Time Code

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows, Linux and Mac SDK

2-year Warranty

Driver

driver
document document Download

V1.3.0.4323

History version Arrow Arrow

1.89 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4076

History version Arrow Arrow

1.73 MB | 2019.07.01 | Windows 7/8/8.1 series & Server System

Descriptions:

Support of Pro Capture Dual SDI 4K Plus.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

2.15 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
driver
document document Download

V1.3.0.4177

History version Arrow Arrow

2.00 MB | 2020.04.13

Descriptions:
  1. Fix problem: In v4l2, enum_framesizes cannot get the correct information in the DISCRETE model.
  2. Fix problem: Signals cannot be locked when using ProCapture DVI 4K card to capture signals.
  3. Fix problem: Driver installation on a 5.4 or 5.6 kernel system may fail.
driver
document document Download

V1.3.0.4186

History version Arrow Arrow

1.99 MB | 2020.08.19

Descriptions:

Fix problem: driver installation may fail on an operating system with kernel version 5.7.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

1.96 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
driver
document document Download

V1.4.44

History version Arrow Arrow

684 KB | 2024.05.06

Descriptions:

Supported macOS: 14.x

If your OS is 10.12/10.13/10.14/10.15/11/12/13, please download V1.3.4141.

driver
document document Download

V1.3.4141

History version Arrow Arrow

515 KB | 2019.12.10

Descriptions:

* Supported macOS: 10.12/10.13/10.14/10.15/11/12/13. If your OS is 14.x, please download V1.4.44.

  1. Add support for Pro Capture Dual SDI 4K Plus.
  2. Add support for NV12 format signals.
  3. Optimize CPU usage.
  4. Fix problem: in some players, the number of audio channels is not detected correctly.
  5. Fix problem: sometimes the quantization range of RGB color is not detected correctly.
  6. For Pro Capture cards with fans, add the function of automatically adjusting fan speed according to the temperature.
driver
document document Download

V1.4.44

History version Arrow Arrow

684 KB | 2024.05.06

Descriptions:

Supported macOS: 14.x

If your OS is 10.12/10.13/10.14/10.15/11.x/12.x/13.x, please download V1.3.4247.

driver
document document Download

V1.3.4247

History version Arrow Arrow

939 KB | 2021.05.18

Descriptions:

Supported Operating Systems

  • macOS* 10.12/10.13/10.14/10.15/11.x/12.x/13.x

If your OS is 14.x, please download V1.4.44.

Firmware

Firmware
History version Arrow Arrow

52.5 MB | 2017.09.08 | Windows 7 and later

Descriptions:
  1. Fix the error in detecting signal of Pro Capture AIO 4K Plus.
  2. Fix the error in memory initialization on X99 chipset.
  3. We recommend this version if you don't use functions related to Closed Caption and ANC Data.
Firmware
History version Arrow Arrow

6.35 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  2. This firmware applies only to Pro Capture Dual SDI A/B/C revisions, and Pro Capture Mini SDI B revision.
Documents
Documents User Manual for Pro Capture Family
English | 704 KB | 2023/08/23
Documents Short FAQs about Pro Capture
English | 60.5 KB | 2021/01/19
Accessories

Included


DVI to VGA connector x2

Part number: ACC00011

DVI-I to HDMI + Component breakout x2

Part number: ACC00010

Optional

Mini Repeater 4K HDMI
