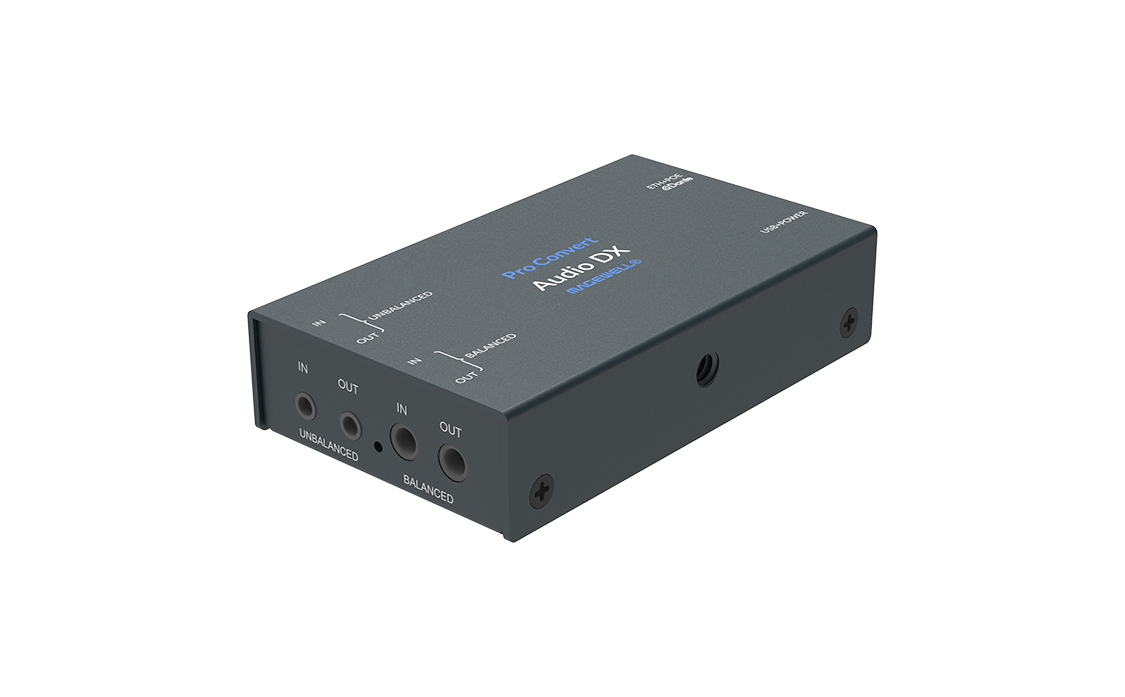

Pro Convert Audio DX
Pro Convert Audio DX

A multi-format IP audio converter and capture device (Dante® enabled)

SKU:
642600000 (for US/EU/UK/AU/JP users);
642600001 KR

  • Offers a seamless bridge between analog audio, software and IP standards including Dante®, NDI®, SRT and more
  • Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
  • Enables mixed-technology local and remote production workflows and ProAV installations

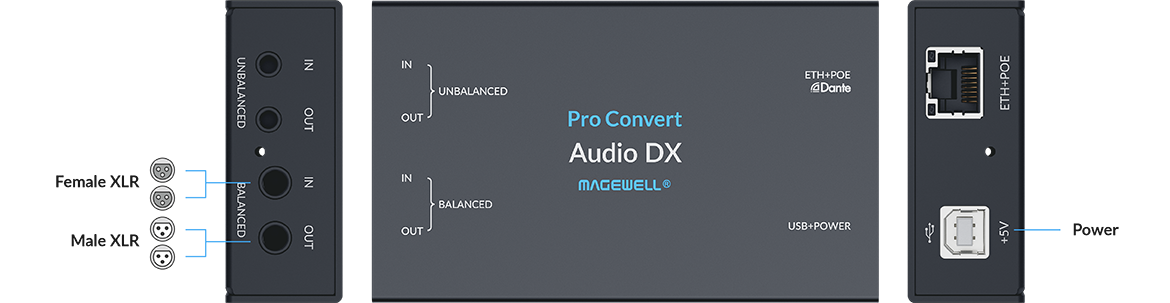

Interface

Specifications and Features

Input/Receiving Features

  • 1 x 2-channel 3.5mm unbalanced in
  • 1 x 2-channel 4.4mm balanced in
  • 1 x 4-channel 24-bit/48k UAC in
  • Receiving 8-channel 24-bit Dante® streams in unicast or multicast
  • Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI® simultaneously

Output/Sending Features

  • 1 x 2-channel 3.5mm unbalanced out
  • 1 x 2-channel 4.4mm balanced out
  • 1 x 4-channel 24-bit/48k UAC out
  • Encoding 8-channel 24-bit Dante® streams in unicast or multicast
  • Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI® protocols simultaneously

Audio routing and mixing Features

  • Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

Others

  • Support for Dante Controller, providing signal routing and configuration
  • Plug-and-play as a UAC device
  • Provide comprehensive information regarding the device and signals in real-time
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs
Full specifications and features
Firmware
Firmware
document document Download

V1.2.814

History version Arrow Arrow

30.9 MB | 2024.08.02

Descriptions:
  1. Support managing user settings.
  2. Optimize the layout of System tab.
Documents
Documents User Manual for Pro Convert Audio DX
English | 4.02 MB | 2024/08/27
Download
Documents Quick Start Guide for Pro Convert Audio DX
English | 833 KB | 2023/05/17
Download
Accessories

Included

Power Adapter (US/EU/UK/AU/JP)x1

Part number: ACC08010

Power Adapter (KR) x1

Part number: ACC08015

USB Type A to Type B cable x1

Part number: ACC00065

L bracket x1

Part number: 92240

4.4mm to Dual XLR Male Cable x1

Part number: ACC10008

4.4mm to Dual XLR Female Cable x1

Part number: ACC10009

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

We provide the 3D printing file for the Fishtail Bracket which you can download and print on your own. For installation instructions, please refer to the Installation Guide for the Fishtail Bracket.

NDI® is a brand of the Vizrt Group. Dante® is a registered trademark of Audinate Pty Ltd.
