InputSource

Supported Hardware Devices: Pro Capture cards, USB Capture devices

Contents Demonstrated in the Sample:

1. Retrieving audio and video input source information
2. Channel selection via command parameters when multiple devices are available

Call Logic:

1. Obtain version information, initialize, and enumerate devices: MWGetVersion, MWCaptureInitInstance, MWRefreshDevice, MWGetChannelCount
2. Open the device:
   1. Open the device specified by command parameters: MWOpenChannel
   2. When no device is specified in command parameters, open the first available channel by default: MWGetDevicePath, MWOpenChannelByPath
3. Retrieve channel information: MWGetChannelInfo
4. Retrieve video input array and video input source: MWGetVideoInputSourceArray, MWGetVideoInputSource
5. Retrieve audio input array and audio input source: MWGetAudioInputSourceArray, MWGetAudioInputSource
6. Release resources: MWCloseChannel, MWCaptureExitInstance

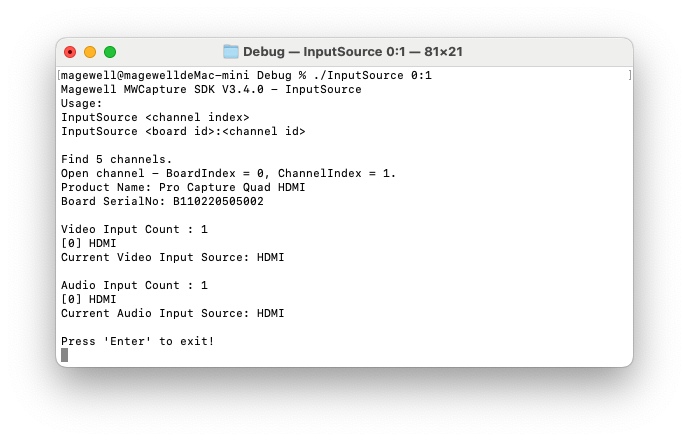

Result:

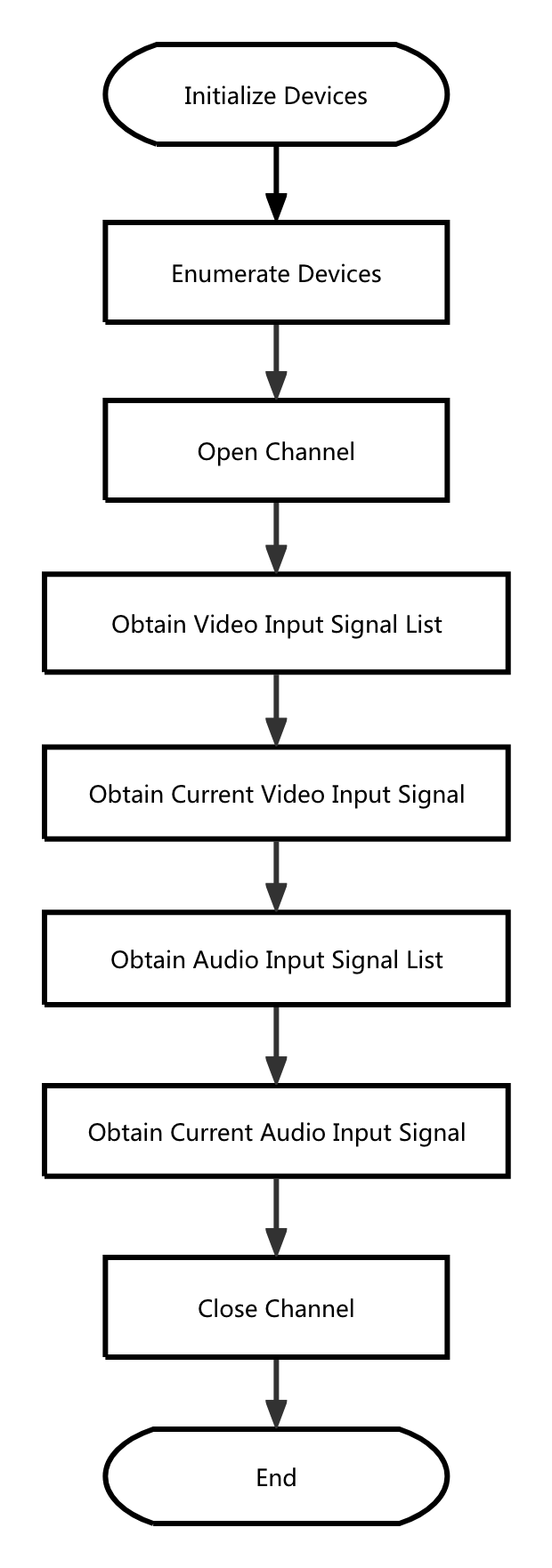

Flowchart:
